X-DRS Floor U-Arm

Space-saving swivel bracket system with motorized movement

X-DRS Floor U-Arm

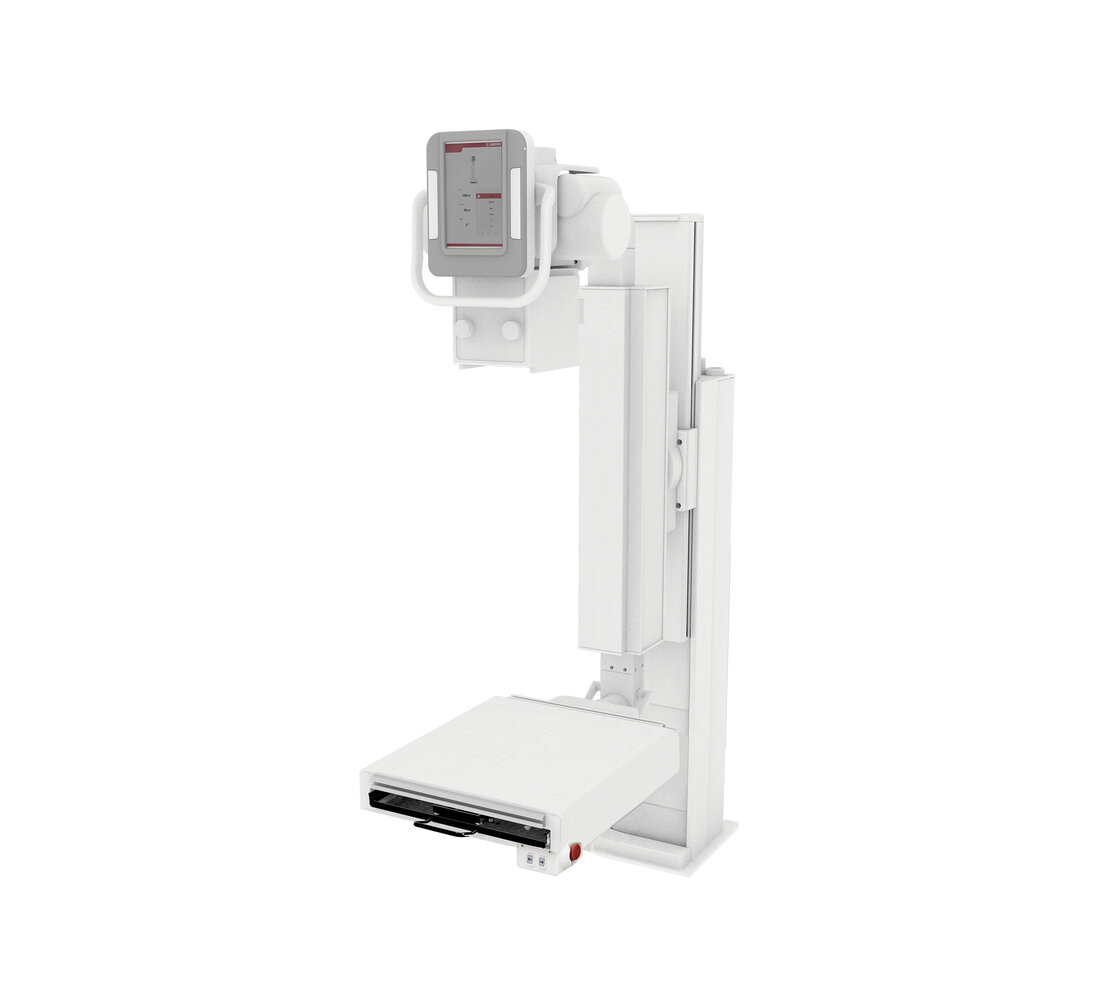

With its compact dimensions, the X-DRS Floor U-Arm swivel bracket system takes up very little space in your X-ray room but offers maximum operator comfort. The touchscreen allows you to conveniently operate the swivel bracket X-ray system and enter the necessary X-ray settings quickly and easily. The X-DRS Floor U-Arm is motorized, allowing you to position your patients comfortably and in just a few steps.

Thanks to the motorized height adjustment of the transverse arm and of the source image distance, positioning does not require any physical effort from you. It can be carried out simply at the touch of a button, allowing you to operate the X-ray system for long periods of time without interruption.

A swivel bracket system only requires one bucky tray and is therefore operated with only one X-ray detector as standard. It is also the right choice for you if you want to take the detector out of the bucky tray as rarely as possible.

  • X-ray tube and bucky tray are directly connected to each other and are thus centered

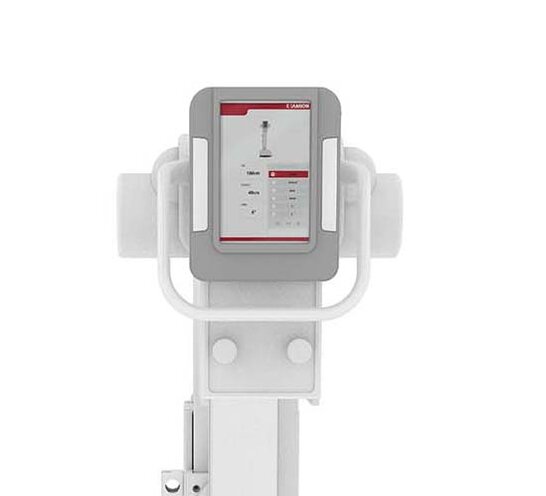

  • Touchscreen for setting various X-ray positions that can be defined and saved in advance
  • Particularly well suited for X-ray exposures in upright position under load
  • Advanced design

Online request

Do you need more information about our products and services?

Contact form

Phone request

Availability
Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Floor U-Arm

Motor movement

No problem with wear and tear on mechanical controls

Flexible examination options

Upright and prone position imaging is possible making the system particularly suitable for example for pulmonologists as well as urologists or orthopedists

Low risk of damage

Significantly reduced risk of damage due to the default fixed integration of the X-ray detector in the bucky tray

Compact design

Perfectly suited for installation in confined X-ray rooms with little floor space

Powered by X-AQS EXAMION X-ray software

X-AQS is intuitive and easy to use via touchscreen, so you can conveniently enter all necessary parameters.

Learn more

Technical Specifications

SID100 cm - 180 cm (39.4" - 70.9") Motorized movement
Vertical TravelMin. 40 cm (15.8") Max. 170 cm (67") Motorized movement
Arm Rotating Angle- 30° - 120° Manual rotation, electromagnetic brake
Tube Rotation± 90° Manual rotation, mechanical brake
Detector Rotation± 45° Manual rotation, mechanical brake
Control10" Touch Screen
BuckyFor cassettes or mobile flat detectors
GeneratorCPI CMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, AEC, hand switch, 3 phases / N / PE, 400 V, incl. console Other generators on request
TubeVarex RAD-14, focal spots 0.6 / 1.2 mm, 300 kHu, max. 150 kV, incl. high voltage cable, weight 17.4 kg (38.4 lbs) Optional: RAD 21, RAD 60
CollimatorManually turnable, LED lamp, integrated timer, laser alignment
AEC3-fi eld measuring chamber with cable
DFP (optional)DAP measuring device or DAP calculation, automatic integration into X-AQS X-ray journal
Warranty5 years warranty on detectors 1 year warranty on all other components Extended warranty on request
CertificationCE 2460
Selectable DetectorsX-DR L WiFiX-DR L WiFi
Premium
X-DR XL WiFiX-DR XL WiFi
Premium
Pixel Size150 μm100 μm139 μm100 μm
Pixel Matrix2.304 px x 2.800 px3.500 px x 4.300 px3.072 px x 3.072 px4.267 px x 4.276 px
Weight3,4 kg2,8 kg4,6 kg3,4 kg
Protection ClassIPX1IP56IPX1IP56
Uniform Load150 kg300 kg100 kg300 kg
Local Load100 kg (4 cm diameter)150 kg (4 cm diameter)100 kg (4 cm diameter)150 kg (4 cm diameter)



ConfigurationsEXAMION X-AQS DICOM Modality SCU • DICOM Worklist SCU • DICOM Store SCU
 EXAMION X-AQS PACS • Integrated Mini-PACS
