X-R More Table
Our mobile X-ray tables are particularly suitable for universal use with stationary swivel bracket systems. The different models cover every need. What they all have in common is their high stability and the many possible applications that are possible thanks to their flexible mobility.

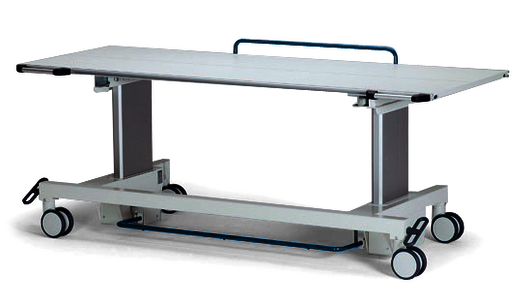

X-R More Table Advanced l
| Table top | Material: Composite fiber table top with high radiolucency Dimensions (standard): 200 cm x 75.5 cm (78.7“ x 29.7“) Dimensions (optional): 200 cm x 65.5 cm (78.7“ x 25.8“) Thickness: 2.5 cm (0.99“) Longitudinal displacement: ± 33 cm (13“) Transverse displacement: ± 10 cm (3.9“) |
| Table height | 76 cm (29.9“) |
| Weight with standard table top | approx. 98 kg (216 lbs) |
| Patient load | max. 230 kg (507 lbs) |
| Optional accessory | Hand grips, mattresses |

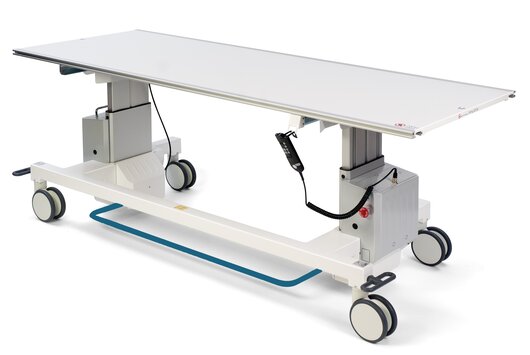

X-R More Table Advanced ll
| Table top | Material: Composite fiber table top with high radiolucency Dimensions (standard): 200 cm x 75.5 cm (78.7“ x 29.7“) Dimensions (optional): 200 cm x 65.5 cm (78.7“ x 25.8“) Thickness: 2.5 cm (0.99“) Longitudinal displacement: ± 33 cm (13“) Transverse displacement: ± 10 cm (3.9“) |
| Table height | 59.5 cm – 86.5 cm (23.4“ – 34.1“), 3 heights programmable |
| Weight with standard table top | approx. 98 kg (216 lbs) |
| Patient load | max. 230 kg (507 lbs) |
| Line connection | 230 VAC / 50 Hz |
| Optional accessory | Hand grips, mattresses |

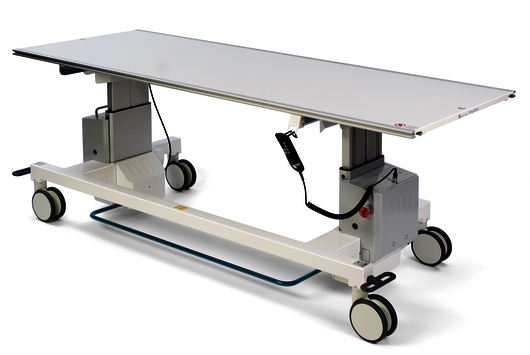

X-R More Table Advanced lll
| Table top | Material: Composite fiber table top with high radiolucency Dimensions (standard): 200 cm x 75.5 cm (78.7“ x 29.7“) Dimensions (optional): 200 cm x 65.5 cm (78.7“ x 25.8“) Thickness: 2.5 cm (0.99“) Longitudinal displacement: ± 33 cm (13“) Transverse displacement: ± 10 cm (3.9“) |
| Table height | 59.5 cm – 86.5 cm (23.4“ – 34.1“), 3 heights programmable |
| Weight with standard table top | approx. 120 kg (265 lbs) |
| Patient load | max. 230 kg (507 lbs) |
| Power supply | 12 VDC @ Battery |
| Line connection | 100 – 240 VAC / 56 – 60 Hz/ max. 1.2 A |
| Optional accessory | Hand grips, mattresses |
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
