X-AQS – Veterinary medicine

Universal X-ray software for generating and managing x-ray images

  • Acquisition
    Acquisition control to power Computed Cadiography (CR) direct digital radiography (DR) systems, X-ray generators, and a variety of external x-ray imaging systems
  • PACS
    PACS (picture archiving and communication system) for all x-ray imaging data
  • Viewer
    x-ray image processing and diagnosing
Modular

Optimally coordinated modules that can be adapted to your needs and requirements.

Intuitive

The clear icons and menu structure ensure intuitive action; the uniform user interface is the same across all modules

Future-proof

The system can grow with you and your practice; the continuos development will make sure further applictions.



Acquisition

Create a new X-ray study

Simply enter the data of the animal owner or the animal or take them over from the administration programme:

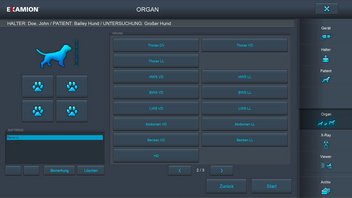

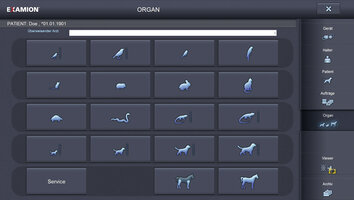

  • Select body part from organ tree (see figure)
  • Select desired image from configurable list of organs (second figure)
  • Create worklist for exposure
  • Receive procedure codes from HIS

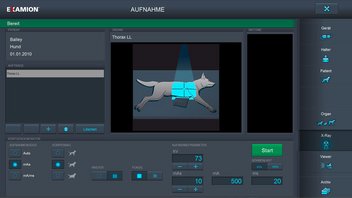

Taking

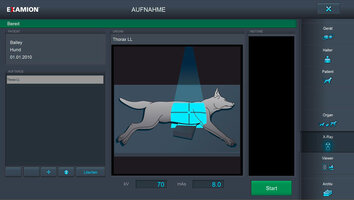

  • Graphic positioning aid
  • Recommended exposure values
  • Transfer of the values to the electronic X-Journal
  • Control of EXAMION X-ray generators

Certified diagnostic viewer at the primary work station

  • Turning, flipping, optimizing brightness and contrast
  • Comprehensive measurement functions
  • Printing and image export

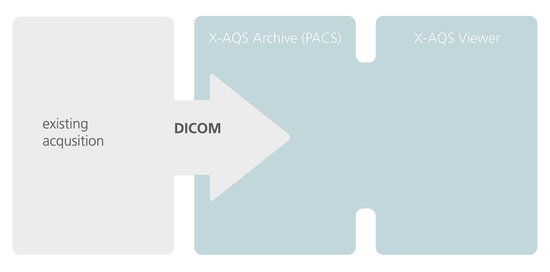

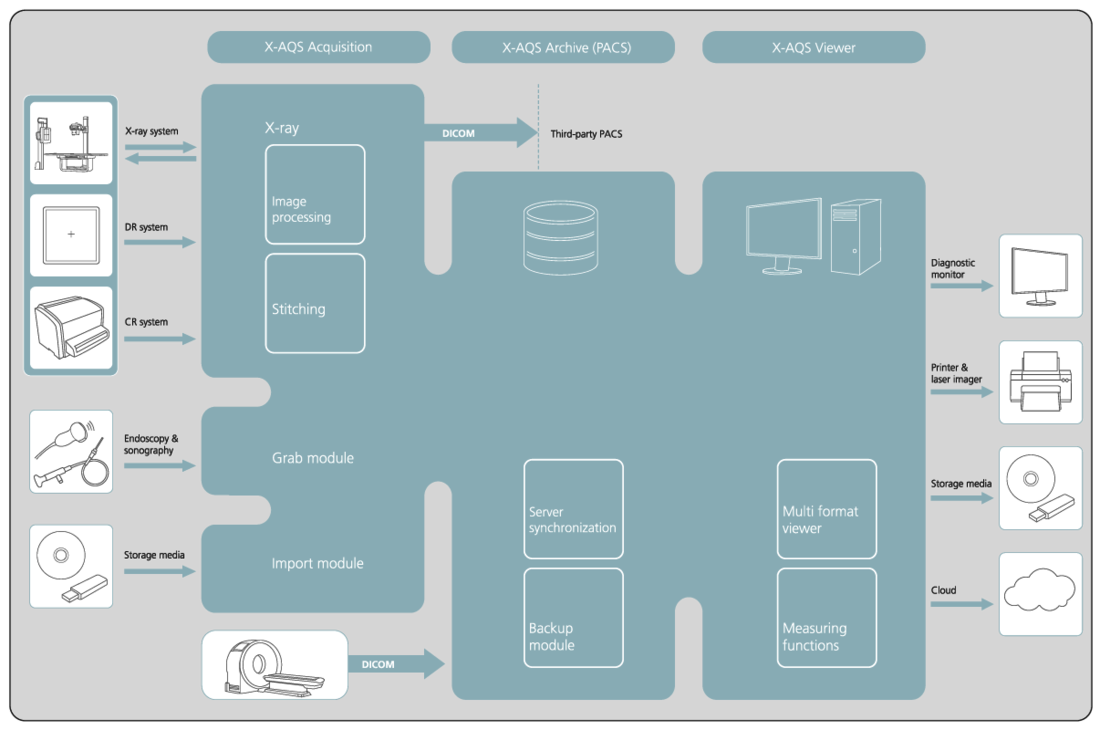

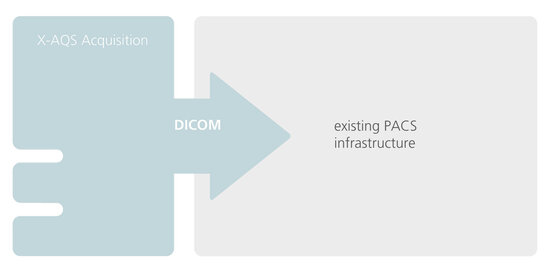

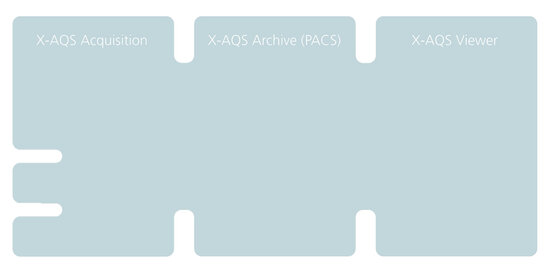

Complete solutions for consistent diagnosis: Image acquisition, archiving and diagnosis as a combined total solution

Integration of other medical imaging sources

Recording video signals

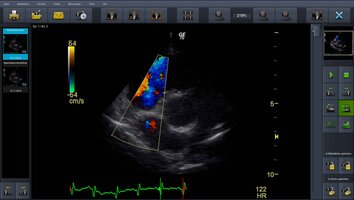

  • Ultrasonography
  • Endoscopy
  • Photo and video cameras
  • Editing function for film

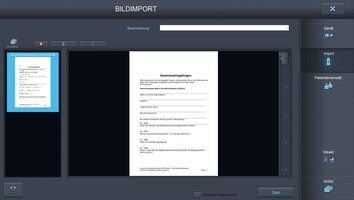

Import

  • Import of X-ray, CT and MRI data via CD and Flash drive
  • Import of any image file
  • Import of PDF file

Archive

Framework

  • Scalable archive on Windows or Linux basis
  • Unlimited number of image files

Synchronisation

  • Between different locations
  • Between mobile and stationary archives

Backup

  • External backup, for example, to optical media
  • Server mirroring

Viewer

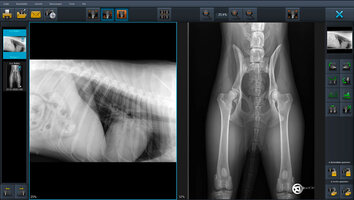

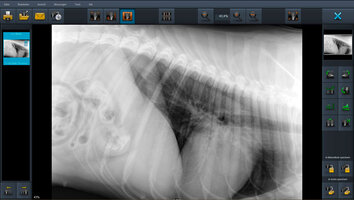

Radiographic images

  • Reportable presentation
  • Extensive editing functions and diagnostic tools
  • Intuitive interface
  • MultiTouch Ability

Photo, video and documents

  • Display of single images and image series
  • Presentation of documents page by page
  • Playing video files

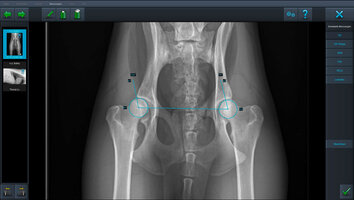

Standard measurements

  • Basic measurements such as distance and circumference

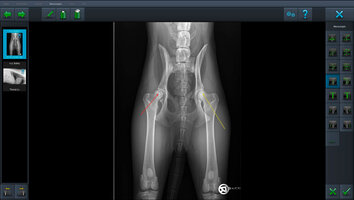

Guided measurements

  • Guided measurement algorithms such as HD, VD thorax, VHS, TTA, TPLO, laminitis

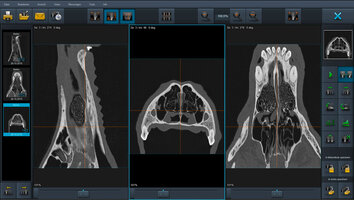

Sequential Imaging

  • Numerous variants for displaying cutting lines
  • Procedure for navigation through cuts
  • Configurable display of scouts and localizers
  • Multiplanar Reconstruction

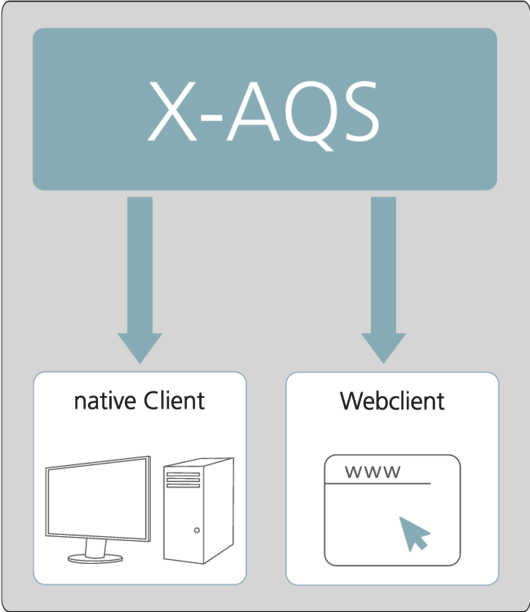

X-AQS web client

Our X-AQS web client is another option available to you. It can be accessed through all current internet browsers that use the latest HTML5 technology.  No programs or files need to be installed on the local computer. This web client is a so-called zero data footprint software client, which leaves no lasting trace. This X-AQS web client software is installed as a web based access to your standard X-AQS client system.

  • The medical image data can be accessed  from any  end device with internet access, including iMacs, iPads or other tablet PCs
  • Ideal for access from home offices, affiliate clinics, consultancy,  or operating rooms
  • Much more than just a viewer: it can also be used for generating orders and managing data related to animal patients and handlers.
