X-DRS Mobile Pro 320

Mobile X-ray systems for immobile hospital patients

X-DRS Mobile Pro 320

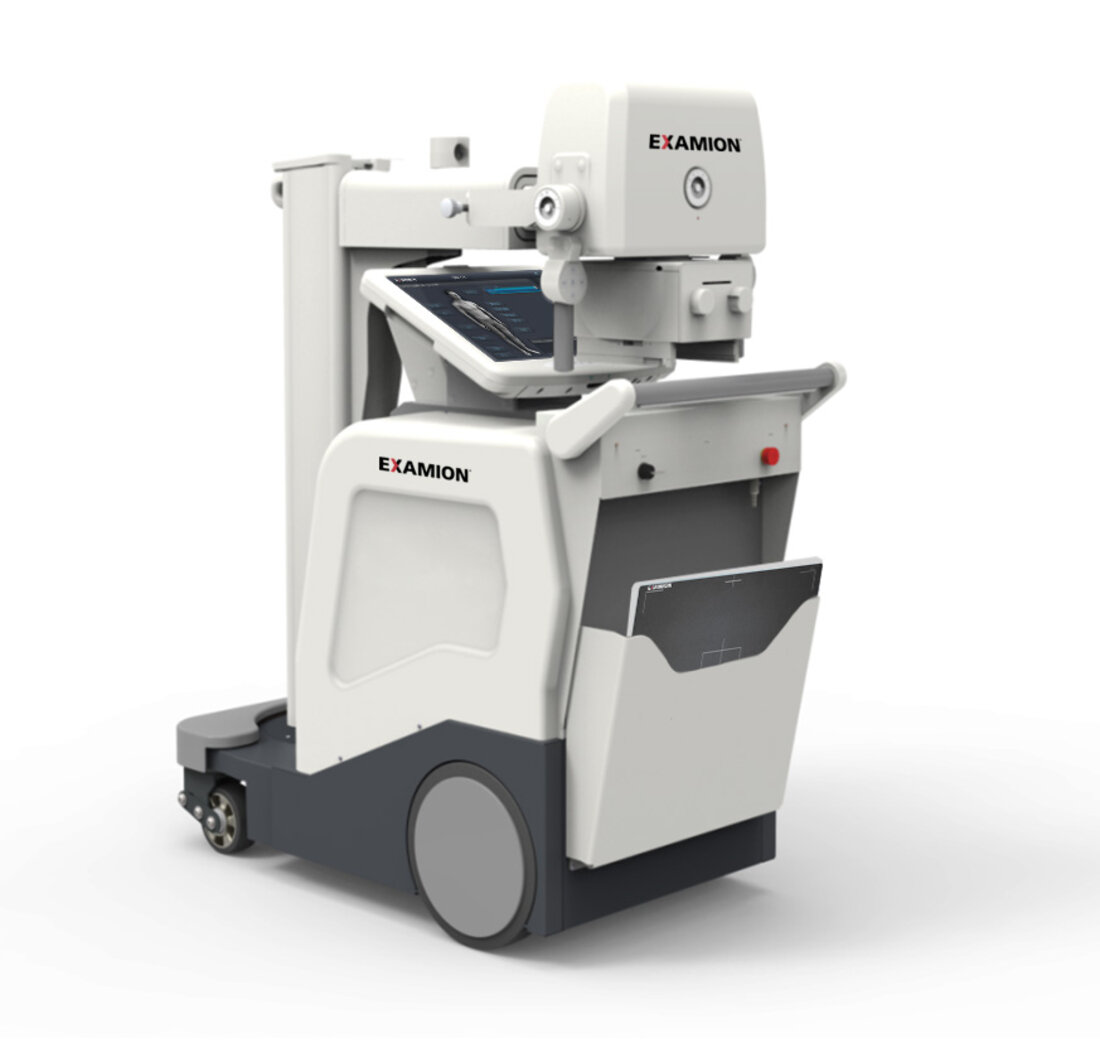

The X-DRS Mobile Pro 320 X-ray system is battery-powered and can be moved easily between locations. It can respond effectively to all hospital radiological requirements:

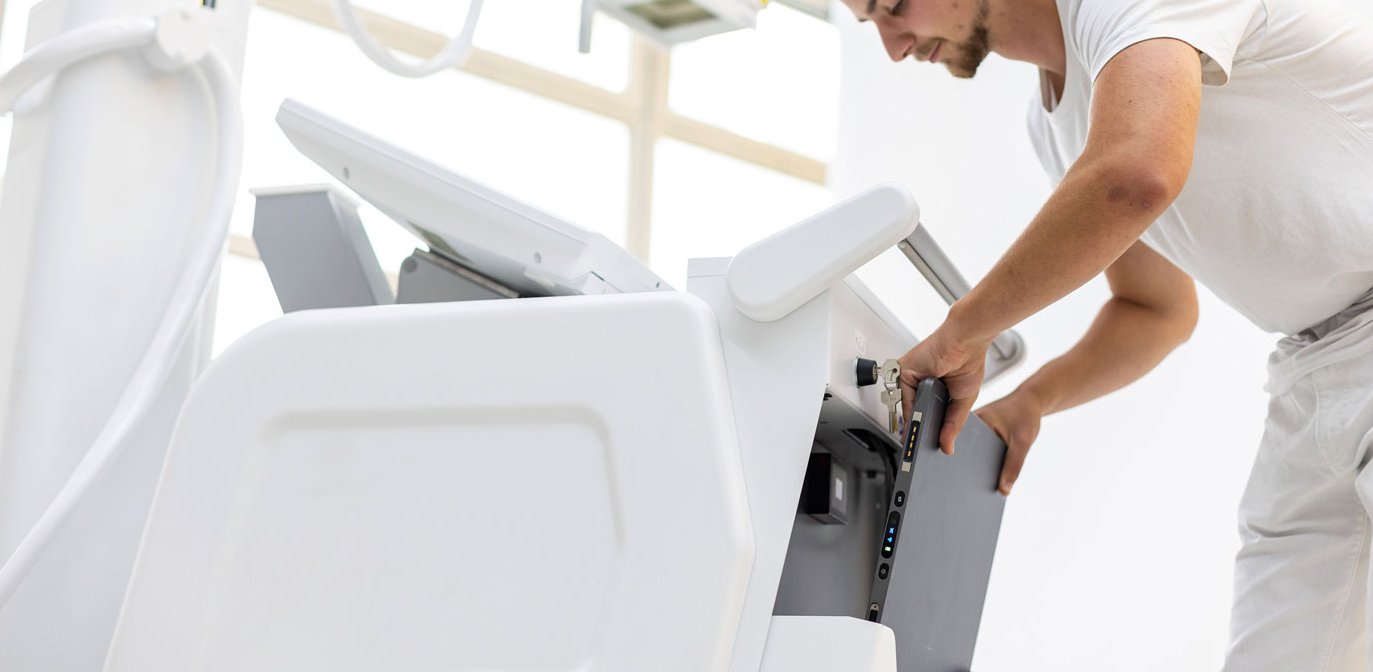

The integrated motor means that it can easily be manoeuvered around obstacles and over inclines. The movement speed is adjusted by the user, and there is a handlebar on the back of the mobile unit for direction control. Motorised positioning over the patient is guided by the buttons on the X-ray tube.

The X-DRS Mobile Pro 320 has 32 kW power output and a monoblock generator with double focus X-ray tube. This means that optimal quality X-ray images both of the extremities and the torso can be acquired.

  • Combined with 35 cm x 43 cm detectors as standard
  • Vertical stand with a height of up to 186 cm

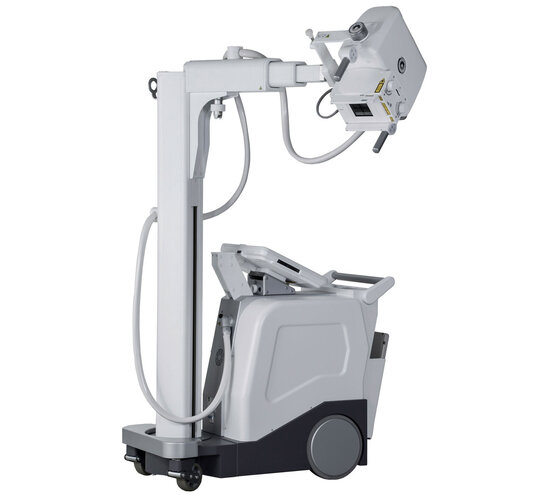

  • Highly flexible with an optional telescopic arm stand, which can be extended for use and retracted for transport

Consultancy

Do you need more information about our products and services?

Contact form

Phone request

Availability
Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Mobile Pro 320

Efficient operation

No complicated additional steps needed before or after X-ray acquisition

Scatter radiation

Scatter radiation is removed directly by the X-ray software so that chest X-ray images can be acquired at the point of care without using a grid

High efficiency

Almost as powerful as a stationary X-ray system, either battery-powered or with mains supply plug-in option

Neonatology

Can also be equipped with 24 cm x 30 cm X-ray detectors for neonatology, on request

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

With our proprietary X-AQS web client X-ray software, you have flexible access to your radiological image data from any internet-enabled device.

Learn more

Technical Specifications

Mains connection:115 V / 230 V ±10 % - 50/60 Hz ± 5 Hz, standard monophase with ground
conductor.
Absorbed current10 A
Line compensationAutomatic
Line resistance<1 Ω @ 115 / 230 Vac
Standard socket16 A @ 230 V
Power supply cable2.9 m, retractable



 Fixed ColumnOption: Telescopic Column
W x L x H (in transport position)576 mm x 1168 mm x 1855 mm576 mm x 1200 mm x 1421 mm
Transport handle height900 mm900 mm
Focus-ground distance (Z-axis)726 mm ÷ 2013 mm660 mm ÷ 1354 mm
Max. height2242 mm2242 mm
Arm extension (X-axis)360 mm360 mm
Front range710 mm ÷ 1070 mm710 mm ÷ 1070 mm
Lateral range517 mm ÷ 877 mm536 mm ÷ 896 mm
Rotation of the monobloc• Around the arm axis (α swivel): ± 180°
• Around the column axis (β swivel): ± 320° from transport position
• Around its axis (γ swivel): 127° (90° forward, 37° backward)
"
MovementMotorized, speed proportional to the force impressed on the transport handle."
Speed forward (transport position)0 ÷ 1,4 m/s"
Speed forward in working position0 ÷ 0,7 m/s"
Speed backwards0 ÷ 0,7 m/s"
Max. superable inclination12° (21 %)"
Diameter of the wheels• Front: 125 mm, antistatic, damped
• Rear: 300 mm, antistatic
"
Weight412 kg, batteries included"
Environmental Conditions

OperatingTemperature:
• 10° C to 40° C (50° F to 104° F)
• Humidity: 30 % to 75 % (non-condensing)
• Atmospheric pressure: 700 hPa to 1060 hPa


Transport / Storage
• Temperature: -25° C to 70° C (-4° F to 122° F)
• Humidity: 10 % to 90 % (non-condensing)
• Atmospheric pressure: 500 hPa to 1060 hPa

"



Battery typeVRLA (Valve regulated lead acid batteries)
Battery pack12 batteries x 12 V, 18 Ah, Pb, 144 Vdc
Vacuum nominal voltage144 Vdc
Load voltage (worst case)100 V @200 A



Power supply115 Vac / 230 Vac ±10 % single-phase, 50 / 60 Hz
Absorption by mains10 A max
Charge indicatorYes
Charge time5 h
SafetiesOvertemperature, overvoltage, charge timeout



Max power of the generator32 kW (320 mA @ 100 kV)
Inverter frequency in high voltage40 kHz
kV variation range40 ÷ 125 kV in steps of 1 kV
mA variation range70 ÷ 320 mA automatically associated to kV
mAs variation range0,1 ÷ 320 mAs with increases of 12,5 %
Exposure times range0,001 ÷ 3 sec according to set mAs
Continuous thermal dissipation60 W



Small focus40 ÷ 100 kV; 0,1 ÷ 200 mAs
Large focus • 40 ÷ 100 kV; 0,63 ÷ 320 mAs
• 101 ÷ 125; 0,63 ÷ 250 mAs
Monoblock• Nominal power (100 kV – 320 mA) 0.1 s: 32 kW
• Max voltage at the tube: 125 kV
• Max current at the tube: 350 mA
• Min. inherent filtration @ 75 kV: 1.4 mm Al
• Thermal capacity available: 600 kJ
• Continuous thermal dissipation: 60 W
• Weight: 19.0 kg
X-ray tube• Rotation speed: 3000 min-¹
• Nominal High voltage: 130 kVp
• Nominal focus dim. (IEC 60336): 0,8 mm small focus, 1,3 mm large focus
• Nominal anodic power (IEC 60613): 16 kW small focus, 32 kW large focus
• Thermal capacity of the anode: 80 kJ (107 kHU)
• Max continuous anode dissipation: 300 W
• Min. inherent filtration (IEC 522): 0,7 mm Al
Collimator• Collimation: Manual with internal light source, multilayer, squared field.
• Coverage of the field at 100cm FFD (SID): min 0 x 0 cm, max 43 cm x 43 cm
• Lighting source: Clusters of high-brightness LED power.
• Focal distance measurement: Retractable tape measure (max extension 3 m)
• Rotation: ± 120°
• Weight: 5.5 kg
• Inherent filtration @ 75 kV: 2 mm Al
Selectable DetectorsX-DR L WiFiX-DR L WiFi Premium
Pixel Size150 μm100 μm
Pixel Matrix2304 x 28003500 x 4300
Weight3.4 kg2,8 kg
Protection ClassIPX1IP56
Uniform Load150 kg300 kg
Local Load100 kg (4 cm diameter)150 kg (4 cm diameter)

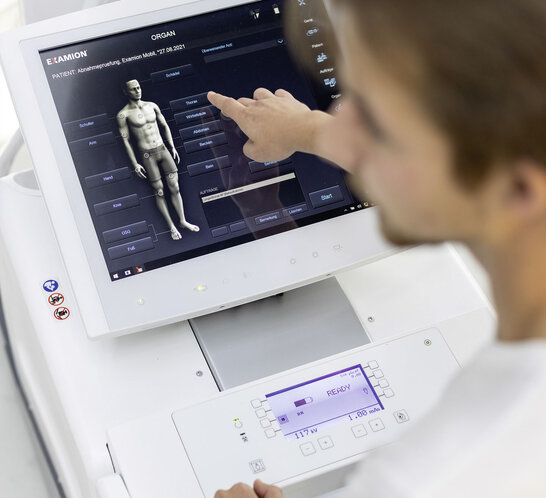

CPUIntel® CoreTM i7
RAM4 GB
Mass Storage60 GB SSD, 460 GB HDD
NetworkGigabit LAN RJ45, WLAN IEEE 802.11 ac / a / b / g / n
Display19", 1280 x 1024, multi-touch screen
Operating SystemWindows 10 IoT
Configurations

EXAMION X-AQS DICOM Modality SCU
• DICOM Worklist SCU
• DICOM Store SCU


EXAMION X-AQS PACS
• Integrated Mini-PACS

X-R Mobile Pro 320

On request, the X-ray unit is also available without digitisation components. Please contact us!

Questions and Answers

EXAMION will continue to stay a strong, reliable partner for the customers, even beyond the purchase process. We perform service, repair and maintenance of the X-ray system and carry out all required tests and measurements competently. Furthermore, we offer attractive financing models. Our sales representatives will be happy to advise you personally and according to your needs.

Yes, an image export of single images can be done in different ways by the users themselves. Available formats include jpg and DICOM. To export DICOM images, our X-AQS “Export Module” is required. This is usually part of the standard configuration of our X-ray software, so it should probably be installed on your system already as well. Depending on the configuration of the X-AQS software, the image data can also be stored on a specific path for further distribution or upload by cloud services. Please feel free to contact our representatives for more detailed information.

Yes, our experts are mostly able to accomplish this; however, we always have to check this individually. Therefore, you do not have to rely on the provider you want to switch from for the conversion.

Do you have any questions?

 Contact us for comprehensive information on the possibilities of the X-DRS Mobile Pro 320.

+49 711 120 002 - 0

vertrieb@examion.com

Contact us

The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
