Digitales Schwenkbügelsystem X-DRS Floor Z-Arm

X-DRS Floor Z-Arm

Fully motorized X-ray system with swivel bracket

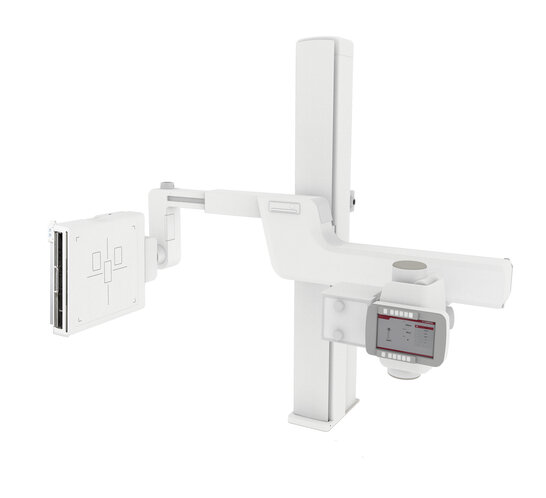

X-DRS Floor Z-Arm

The advanced X-DRS Floor Z-Arm swivel bracket system is designed specifically to make operation and adjustment as convenient as possible and to provide maximum support for the X-ray staff. The X-ray system is fully motorized, all movements can be carried out non-mechanically. The X-DRS Floor Z-Arm is particularly comfortable when the X-ray system is operated without interruption and over prolonged periods of time, often taking inclined images.

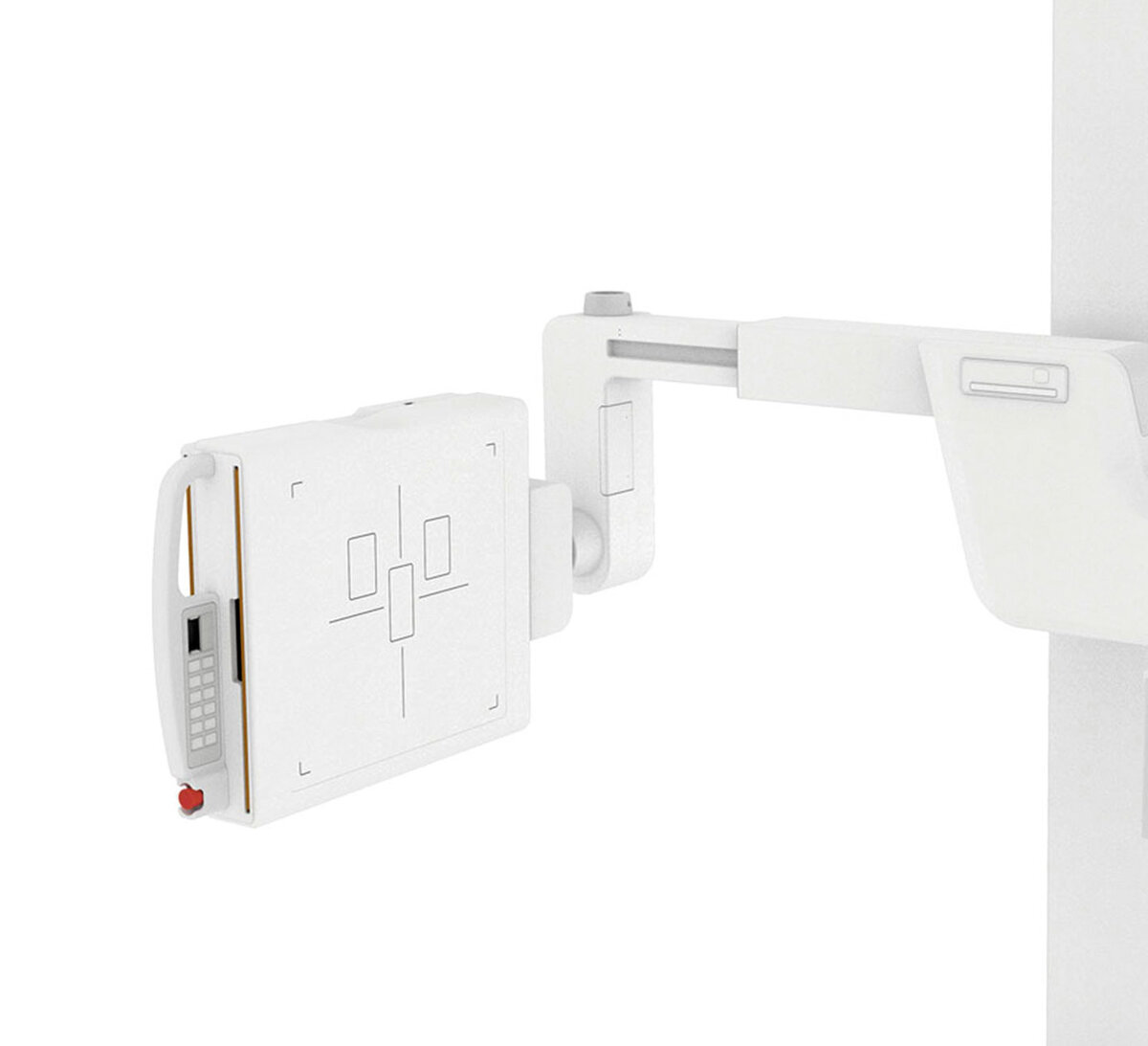

The swivel bracket can be positioned easily and effortlessly at the push of a button: Previously saved positions for the respective X-ray examination, including the rotation of the bucky tray, can be selected on the touchscreen – i.e. the positions for inclined images can also be saved.

Thanks to the fully motorized Z-Arm, there is also a sophisticated stitching option for X-ray images available: For this, the cross arm and detector are rotated in such a way that the individual beam cones all emanate from the same origin. This ensures optimal overlap of the individual images.

  • Auto-positioning of the X-ray system according to the system's organ programs
  • X-ray source and bucky tray are directly connected to each other and are thus centered
  • Lateral X-ray images: Lateral hip and spine imaging possible without turning
  • Stitching option: Automatic positioning for the required partial X-ray exposures

Online request

Do you need more information about our products and services?

Contact form

Phone request

Availability
Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Floor Z-Arm

Fully motorized X-ray system

No movement has to be carried out mechanically during operation

Positioning at the push of a button

Selection of previously saved positions on the touchscreen, including positions for inclined images

Space-saving dimensions

Even suitable for small X-ray rooms

Powered by X-AQS EXAMION X-ray software

Generate high-quality digital X-ray images: Our X-ray software X-AQS also includes the function for automatic stitching.

Learn more

Technical Specifications

SID100 cm - 180 cm (39.4" - 70.9") Motorized movement
Vertical TravelMin. 40 cm (15.8") Max. 170 cm (67") Motorized movement
Arm Rotating Angle- 30° - 120° Motorized movement
Tube Rotation± 90°
Detector Rotation± 45° Motorized movement
Control10" Touch Screen
BuckyFor cassettes or mobile flat detectors
GeneratorCPI CMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, AEC, hand switch, 3 phases / N / PE, 400 V, incl. console Other generators on request
TubeVarex RAD-14, focal spots 0.6 / 1.2 mm, 300 kHu, max. 150 kV, incl. high voltage cable, weight 17.4 kg (38.4 lbs) Optional: RAD 21, RAD 60
CollimatorManually turnable, LED lamp, integrated timer, laser alignment
AEC3-field measuring chamber with cable
DFP (optional)DAP measuring device or DAP calculation, automatic integration into X-AQS X-ray journal
Warranty5 years warranty on detectors 1 year warranty on all other components Extended warranty on request
CertificationCE 2460
Selectable DetectorsX-DR L WiFiX-DR L WiFi
Premium
X-DR XL WiFiX-DR XL WiFi
Premium
Pixel Size150 μm100 μm139 μm100 μm
Pixel Matrix2.304 px x 2.800 px3.500 px x 4.300 px3.072 px x 3.072 px4.267 px x 4.276 px
Weight3,4 kg2,8 kg4,6 kg3,4 kg
Protection ClassIPX1IP56IPX1IP56
Uniform Load150 kg300 kg100 kg300 kg
Local Load100 kg (4 cm diameter)150 kg (4 cm diameter)100 kg (4 cm diameter)150 kg (4 cm diameter)



ConfigurationsEXAMION X-AQS DICOM Modality SCU
• DICOM Worklist SCU
• DICOM Store SCU
 EXAMION X-AQS PACS
• Integriertes Mini-PACS
