X-DRS Floor U-Arm Manual

X-ray system with swivel bracket for small X-ray rooms

X-DRS Floor U-Arm Manual

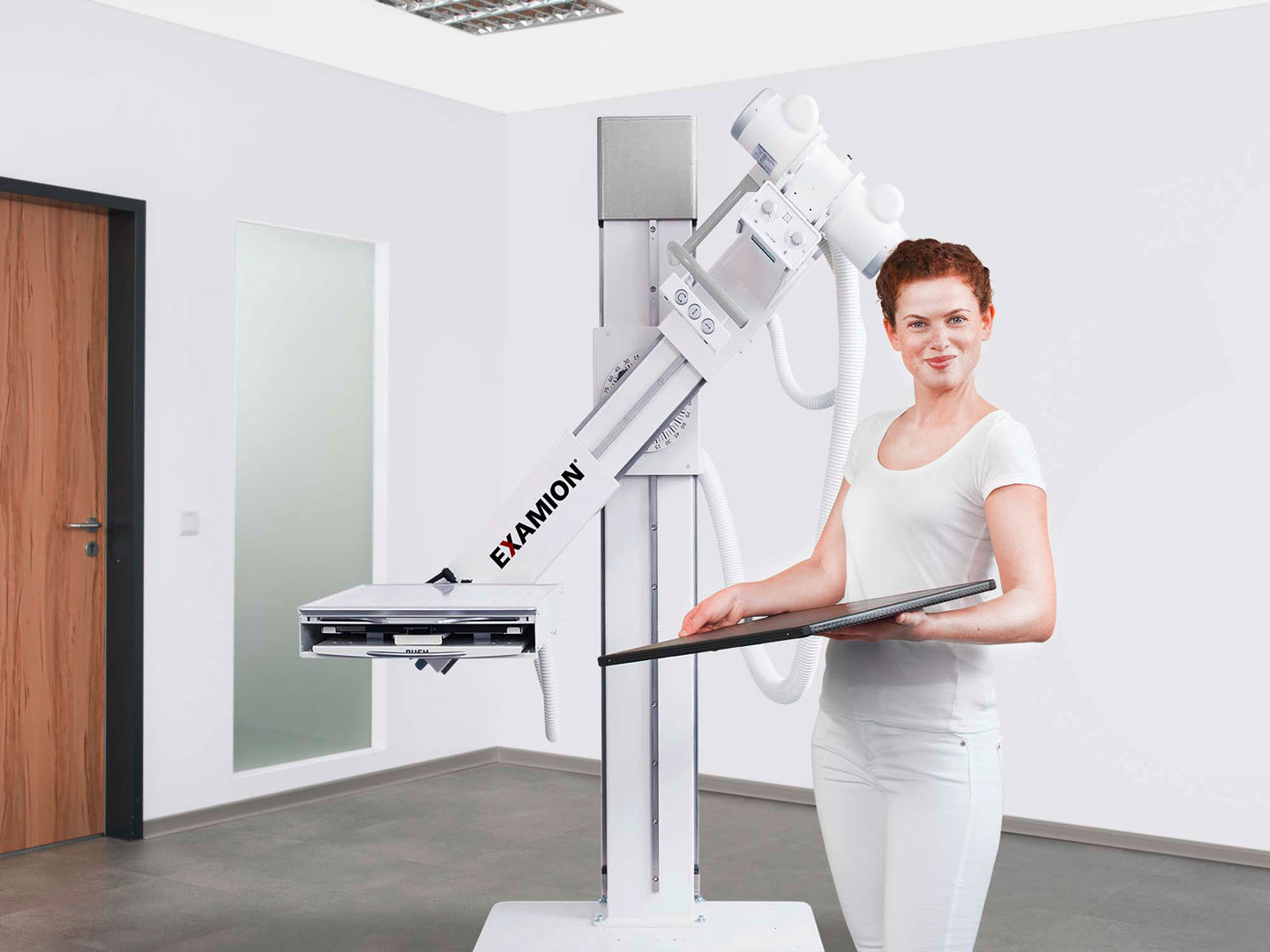

Does your practice have limited space available for X-ray equipment? The compact design of the X-DRS Floor U-Arm Manual means that you save on space — but not on quality or reliability. The mechanical parts of the X-ray system are ergonomically designed with durability in mind, and the swivel bracket is a reliable tool that is convenient and easy to use in restricted spaces.

Correct positioning is easy for experienced X-ray personnel, and adjustments such as switching between recumbent and upright exposures by rotating the cross arm, adjusting the arm height for upright shots, or changing the source image distance, can sometimes be done even faster than with a motorised swivel bracket system.

Further advantages of the X-DRS Floor U-Arm Manual: Since the swivel bracket X-ray system has only one bucky tray, there is no need to switch the detector from one tray to another, saving on time. It also of course means that the X-ray system is always ready for use, and that the detector is consistently protected, thus avoiding the potential damage associated with frequent removal as well as additional costs of repair or replacement.

  • X-ray emitter and bucky tray directly linked for accurate centering
  • Efficient mode of operation, even for increased volume throughput

Rent instead of buying

As part of our rental offer, which we will also be happy to provide for the X-DRS Floor U-Arm Manual swivel bracket, we will keep your X-ray system up to date with system updates.

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Floor U-Arm Manual

User-friendly operation

Adjustments and positioning can be carried out quickly and easily

Reliable and fail-safe technology

Low probability of technical error due to clean mechanical design

Minimal training

The necessary expertise required to ensure correct positioning of patients can be acquired in a minimal amount of time

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

Acquisition of digital X-ray images, PACS and viewers: EXAMION X-AQS is a universal software platform for high-quality digital radiographic imaging.

Learn more

Technical Specifications

Vertical Travel
(electromagnetic brakes)
Min. 27 cm (10.7")
Max. 170 cm (67")
Cross armrotable, inclined exposures possible, electromagnetic brakes
SID100 cm ~ 200 cm (39.4" ~ 78.8")
Bucky unit± 45° rotatable
Weightapprox. 260 kg (573 lbs), incl. tube, collimator, bucky and base
Regulatory requirements and standardsCE 2460


GeneratorCMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, max. 200 kHz,
AEC, hand switch, 3 phases / N / PE, 400 V, incl. console
TubeToshiba E7252X, focal spots 0.6 / 1.2 mm, 300 KHu, max. 150
kV, incl. high voltage cable, weight approx. 18 kg (39.7 lbs)
CollimatorManually turnable, LED lamp, integrated timer, laser alignment
DAPDose area product measurement device, integrated display,
automatic integration into X-AQS X-ray journal
Messkammer3-Felder-Messkammer mit Kabel
OptionalTube: RAD-14, RAD-21
Other generators on request
Warranty12-month warranty
Extended warranty on request


Selectable DetectorsX-DR L WiFiX-DR L WiFi
Pixel Size150 μm100 μm139 μm100 μm
Pixel Matrix2,304 px x 2,800 px3,500 px x 4,300 px3,072 px x 3,072 px4,267 px x 4,276 px
Weight3.4 kg2.8 kg4.6 kg3.4 kg
Protection ClassIPX1IP56IPX1IP56
Uniform Load150 kg300 kg100 kg300 kg
Local Load100 kg
(4 cm diameter)
150 kg
(4 cm diameter)
100 kg
(4 cm diameter)
150 kg
(4 cm diameter)


X-R Floor U-Arm Manual

On request, the X-ray unit is also available without digitisation components. Please contact us!
