Digitales Schwenkbügelsystem X-DRS Floor Z-Arm

X-DRS Floor Z-Arm

Fully motorized X-ray system with swivel bracket

X-DRS Floor Z-Arm

The advanced X-DRS Floor Z-Arm swivel bracket system is designed specifically convenient operation and adjustment, and offers maximum physical support for X-ray system operators. The X-ray system is fully motorised - all movements can be carried out with motorised assistance. The X-DRS Floor Z-Arm is particularly useful if the X-ray system is in continuous use over longer periods of time, and especially if angled images need to be acquired.

The swivel bracket can be positioned easily and effortlessly with the click of a button: Previously saved positions for the respective X-ray examination, including bucky tray rotation, can be selected from the touchscreen and positions for inclined images can also be saved.

The fully motorised Z-Arm also offers a sophisticated stitching option for X-ray images: In this case the cross arm and the detector are rotated in such a way that all cone beams emanate from the same point of origin. This ensures optimal overlap of the individual images.

  • Auto-positioning of the X-ray system according to system organ lists
  • X-ray emitter and bucky tray are directly linked for accurate centering
  • Lateral X-ray images: Lateral hip and spine imaging possible without rotation
  • Stitching option: Automatic positioning for the required partial X-ray exposures

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Floor Z-Arm

Fully motorised X-ray system

No mechanical movements requiring physical effort need to be performed

Positioning at the push of a button

Selection of previously saved positions on the touchscreen, including positions for angled images

Compact design

Suitable for the smallest X-ray rooms

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

For the high-quality digital X-ray images you need Our X-AQS X-ray software also includes automatic stitching functionality.

Learn more

Technical Specifications

SID100 cm - 180 cm (39.4" - 70.9") Motorized movement
Vertical TravelMin. 40 cm (15.8") Max. 170 cm (67") Motorized movement
Arm Rotating Angle- 30° - 120° Motorized movement
Tube Rotation± 90°
Detector Rotation± 45° Motorized movement

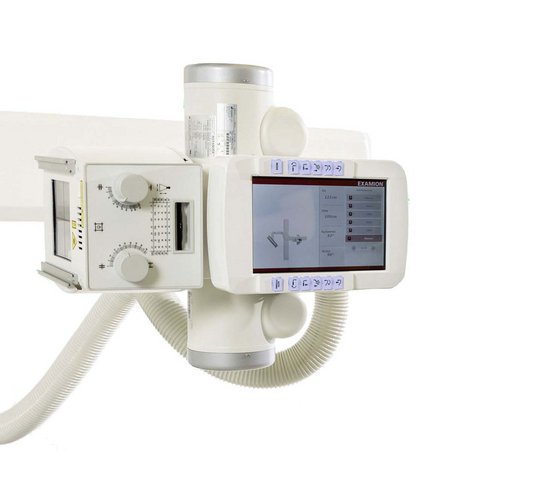

Control10" Touch Screen
BuckyFor cassettes or mobile flat detectors
GeneratorCPI CMP 200 DR, 50 kW, max. 630 mA, max. 150 kV, AEC, hand switch, 3 phases / N / PE, 400 V, incl. console Other generators on request
TubeVarex RAD-14, focal spots 0.6 / 1.2 mm, 300 kHu, max. 150 kV, incl. high voltage cable, weight 17.4 kg (38.4 lbs) Optional: RAD 21, RAD 60
CollimatorManually turnable, LED lamp, integrated timer, laser alignment
AEC3-field measuring chamber with cable
DFP (optional)DAP measuring device or DAP calculation, automatic integration into X-AQS X-ray journal
Warranty5 years warranty on detectors 1 year warranty on all other components Extended warranty on request
CertificationCE 2460
Selectable DetectorsX-DR L WiFiX-DR L WiFi
Pixel Size150 μm100 μm139 μm100 μm
Pixel Matrix2.304 px x 2.800 px3.500 px x 4.300 px3.072 px x 3.072 px4.267 px x 4.276 px
Weight3,4 kg2,8 kg4,6 kg3,4 kg
Protection ClassIPX1IP56IPX1IP56
Uniform Load150 kg300 kg100 kg300 kg
Local Load100 kg (4 cm diameter)150 kg (4 cm diameter)100 kg (4 cm diameter)150 kg (4 cm diameter)


ConfigurationsEXAMION X-AQS DICOM Modality SCU
• DICOM Worklist SCU
• Integriertes Mini-PACS

X-R Floor Z-Arm

On request, the X-ray unit is also available without digitisation components. Please contact us!

Do you have any questions?

Your sales and support representative will be happy to answer any questions you might have about the X-DRS Floor Z-Arm.

+49 711 120 002 - 0

Contact us

The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
