X-DRS Portable 4/8 kW

Portable X-ray system for mobile emergency operations

X-DRS Portable 4/8 kW

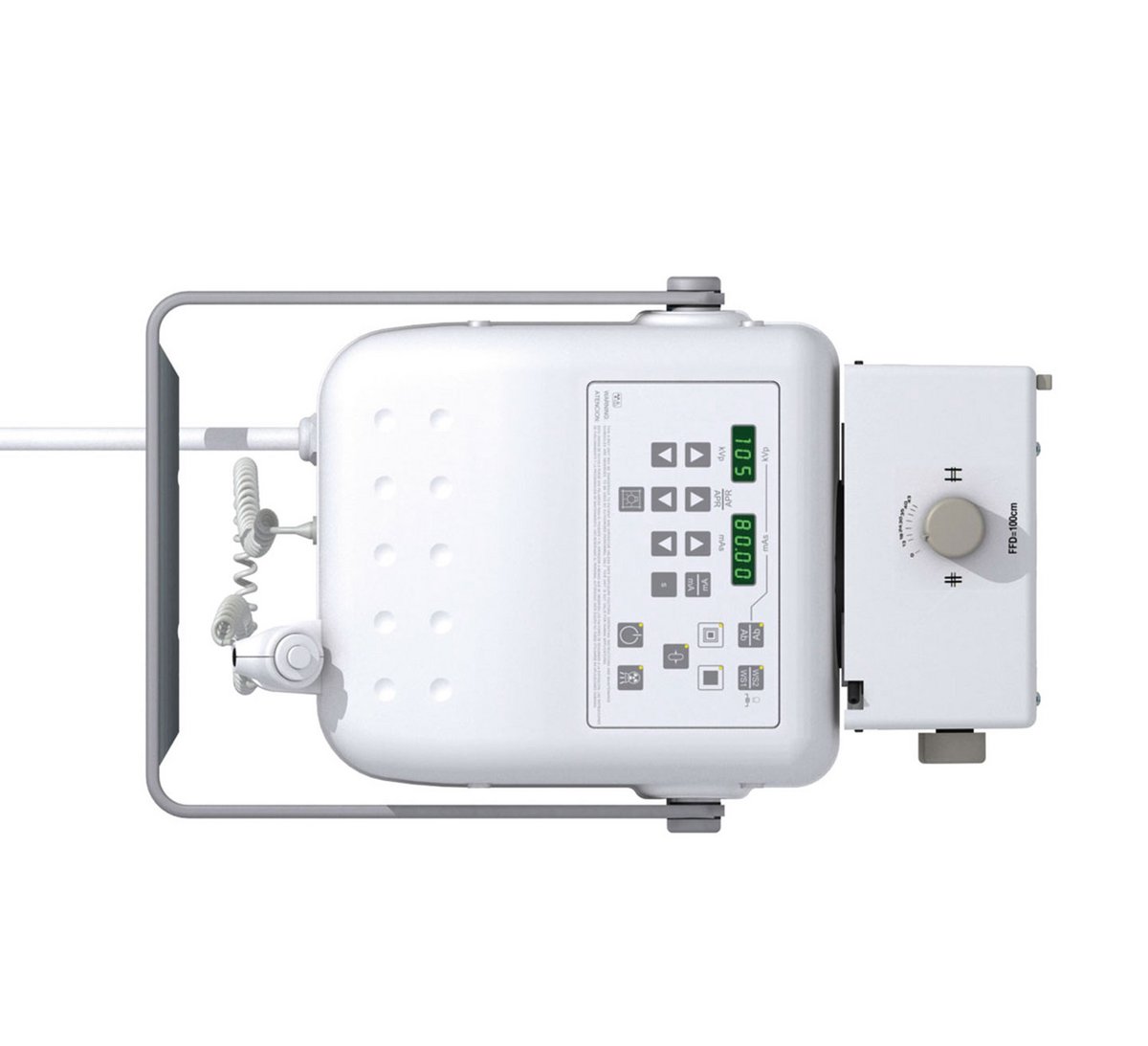

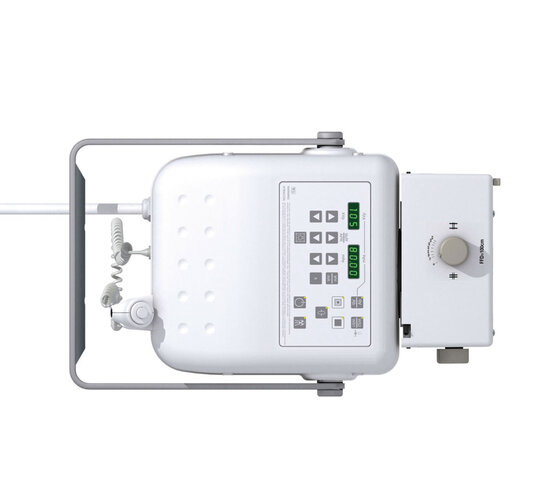

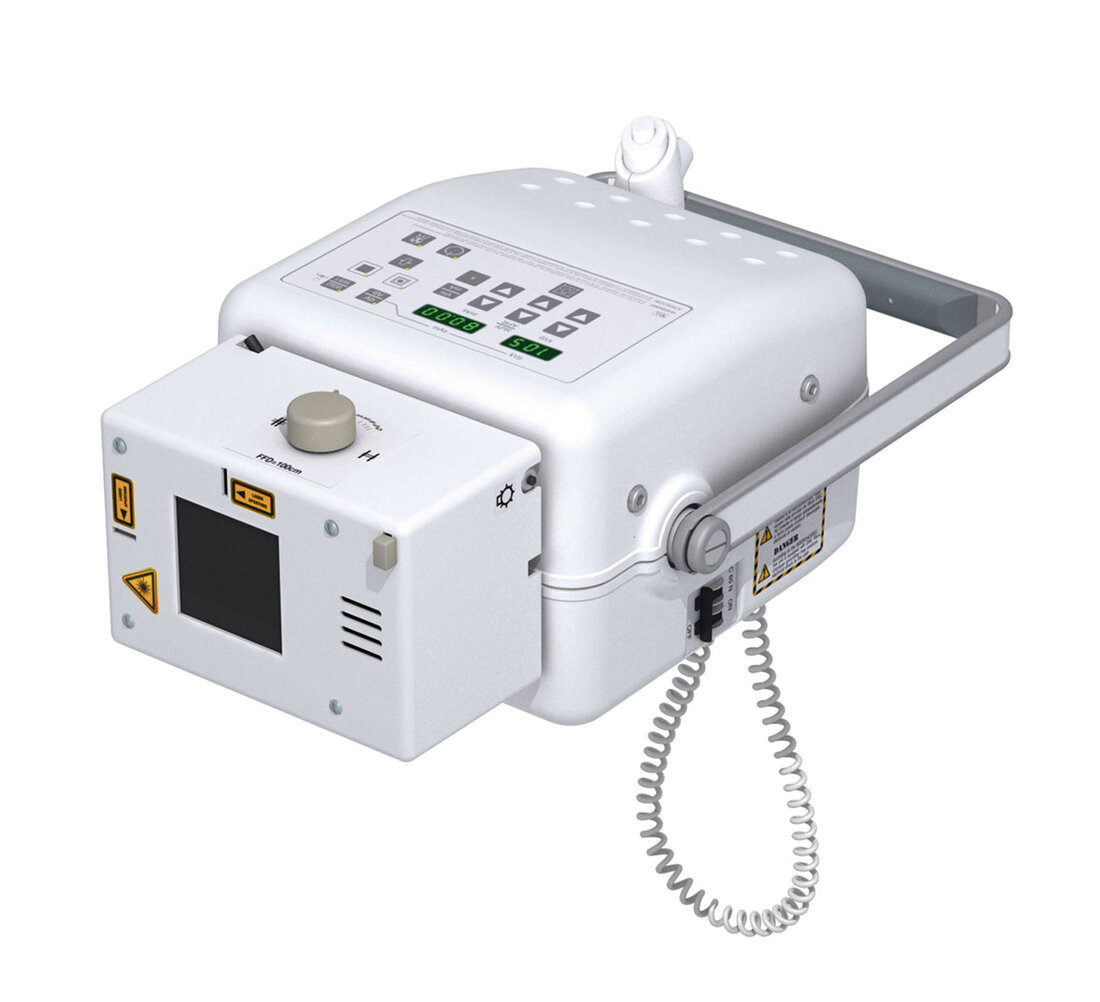

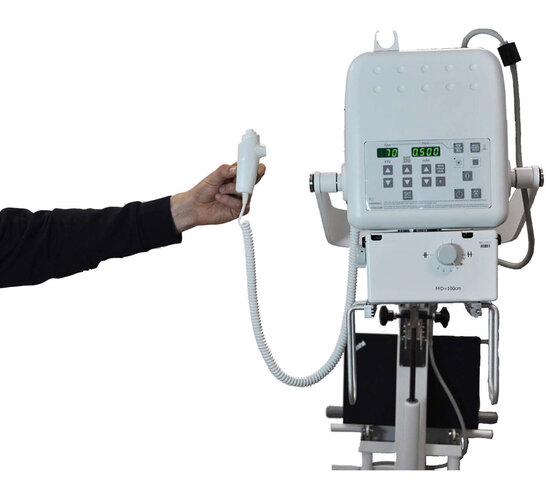

The X-DRS Portable 4/8 kW consists of a portable 4 or 8 kW X-ray device and a collapsible stand. Each component is designed for minimal weight: 15 kg for the X-ray device with a compact transport case, 28 kg for the stand. For the user this means the system can be easily transported for use at another location, even for a few exposures. Dismantling is fast and easy and requires almost no physical effort. The X-ray system can be collapsed for transport very quickly. Despite its easy portability, the X-ray tube is extremely powerful and is able to be used for acquisition of most types of X-ray image. Accordingly, this X-ray device is capable of consistently producing high-quality X-ray images.

Online request

Do you need more information about our products and services?

Contact form

Service Hotline

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Portable 4/8 kW


Fully portable for use in any location

User-friendly operation

For quick acquisition of error-free X-ray images

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

For a complete X-ray system with optimally matched components, the X-R Portable 4/8 kW can be complemented by our X-AQS X-ray software developed in-house.

Learn more

Technical Specifications

Constant potential kW ratings4,0 / 8,0
kVp range in 1 kVp steps Accuracy40 to 125 ± 5 %
High frequency ripple300 kHz
mA stations5, 6,4, 8, 10, 12,5, 16, 20, 25, 32, 40, 50, 64, 80, 100
Exposure time range Number of stations0,001 – 10 s
mAs range Number of stations Accuracy0,1 – 250 mAs
± 5 %


Stationary anodeYes
Two focal spots0,6 – 1,5 mm / 0,6 – 2,8 mm
Anode heat storage capacity40000 HU / 76000 HU
Target angle12°
Red laser pointerOptional
Power cord6 m
Exposure cord3 m
Line regulationSingle-phase line automatic Regulation. Automatic output power adaption to power line conditions
Line power requirements (± 10% VAC, 50 / 60 Hz)110 – 240 VAC / 220 – 240 VAC

X-ray unit: 15kg (33 lbs)

Foldable tripod: 28 kg (62 lbs


12-month warranty, extended warranty on request
