Mobiles Röntgensystem für temporäre medizinische Einsätze

X-DRS Mobile 4/8 kW

Mobile X-ray system – Specially designed for emergency examination situations

X-DRS Mobile 4/8 kW

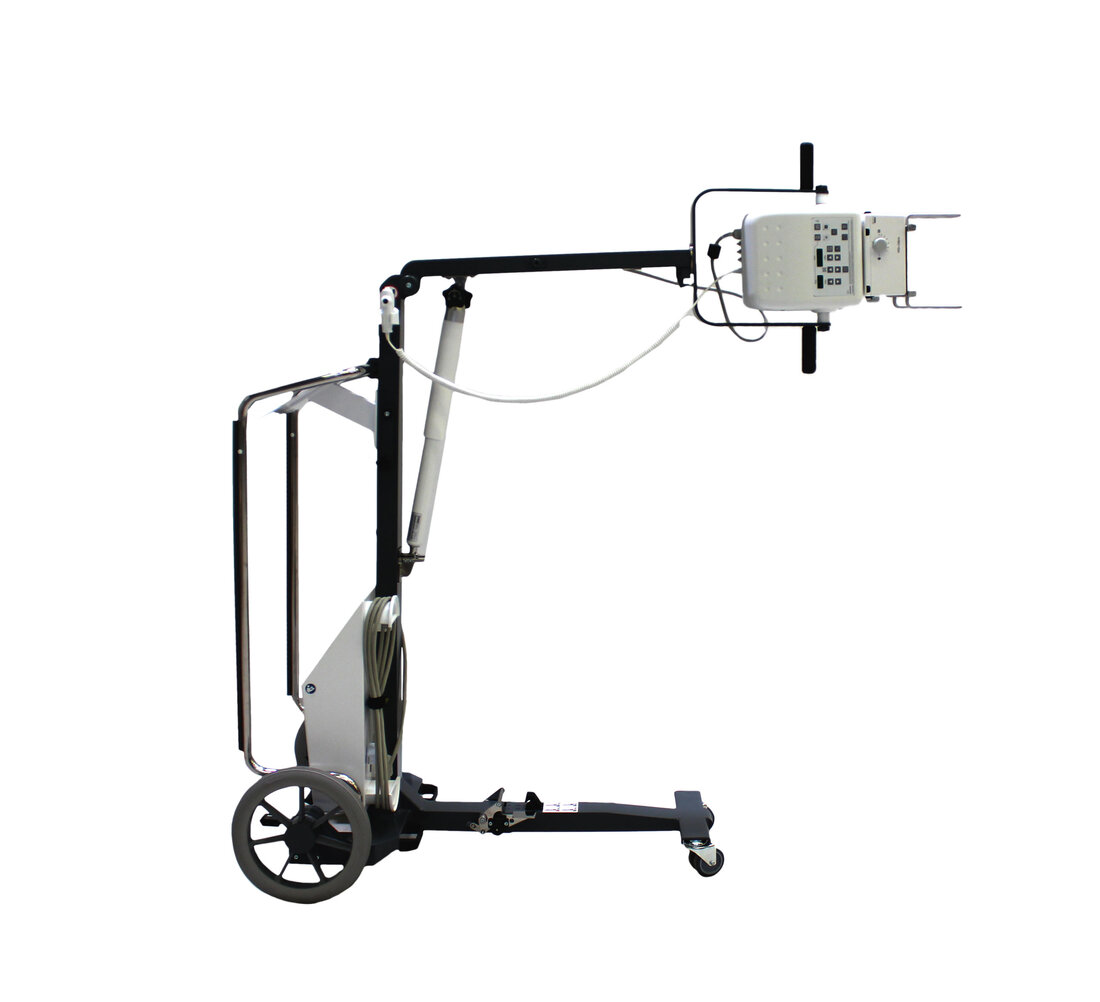

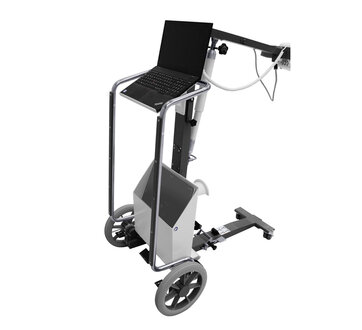

The X-DRS Mobile 4/8 kW consists of a mobile stand with braking system to hold it in place, with an X-ray system mounted on it. It can also be coupled with an EXAMION X-ray detector and fully controlled via our X-AQS X-ray software.

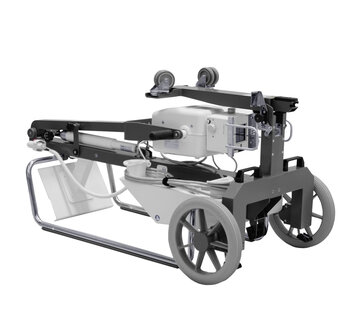

The mobile X-ray system is a flexible option for acquisition of radiological images in different departments and in the field. Not only can it be transported safely from room to room, but it is also suitable for transport to off-site locations. The X-DRS Mobile 4/8 kW can be quickly and easily collapsed to a compact transportable unit for use in another location in a few simple steps.

  • Weighs only 46 kg
  • Can also be combined with the X-DR L WiFi unit for maximum system compatibility
  • Can be ideally combined with the X-DR L WiFi Portable Case or the X-DR L WiFi Portable Bag for easy transportation
  • The X-DRS Portable 4/8 kW is also available with a collapsible tripod stand instead of a wheeled mobile stand

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Mobile 4/8 kW

Central control unit

All components can be operated wirelessly using the EXAMION X-AQS software as required


Collapsible to a compact size for quick relocation on or off-site

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

X-AQS is a universal software platform for modular digital radiographic systems that can be customised to meet your individual needs.

Learn more

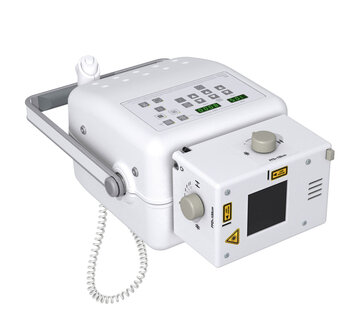

Technical Specifications

Constant potential kW ratings4,0 kW8,0 kW
kVp range in 1 kVp steps Accuracy40 to 125 ± 3 %
mA stations5, 6,4, 8, 10, 12,5, 16, 20, 25, 32, 40, 50, 64, 80, 100
Exposure time range Number of stations0.001 – 10 s 41 (in 25 % steps)
mAs range Number of stations Accuracy0.1 – 250 mAs 34 (in 25 % steps) ± 5 %


Stationary anodeYes
Two focal spots0,5 mm – 1,8 mm0,6 mm – 2,8 mm
Anode heat storage capacity47.215 HU40.000 HU
Target angle16°15°
Red laser pointerOptional
Power cord6 m
Exposure cord3 m
Line regulationSingle-phase line automatic Regulation. Automatic output power adaption to power line conditions.
Line power requirements (± 10 % VAC, 50 Hz / 60 Hz)100 – 240 VAC220 – 240 VAC
Weight15 kg
Warranty12-month warranty, extended warranty on request
