X-R Static Univet
The X-R Static Univet is a high performance universal, reliable X-ray system.
Thanks to the floating tabletop, the animals can be comfortably positioned for examinations in your small animal practice. No special power supply is required for the installation; the X-R Static Univet can be plugged into the mains and is therefore easy to set up.

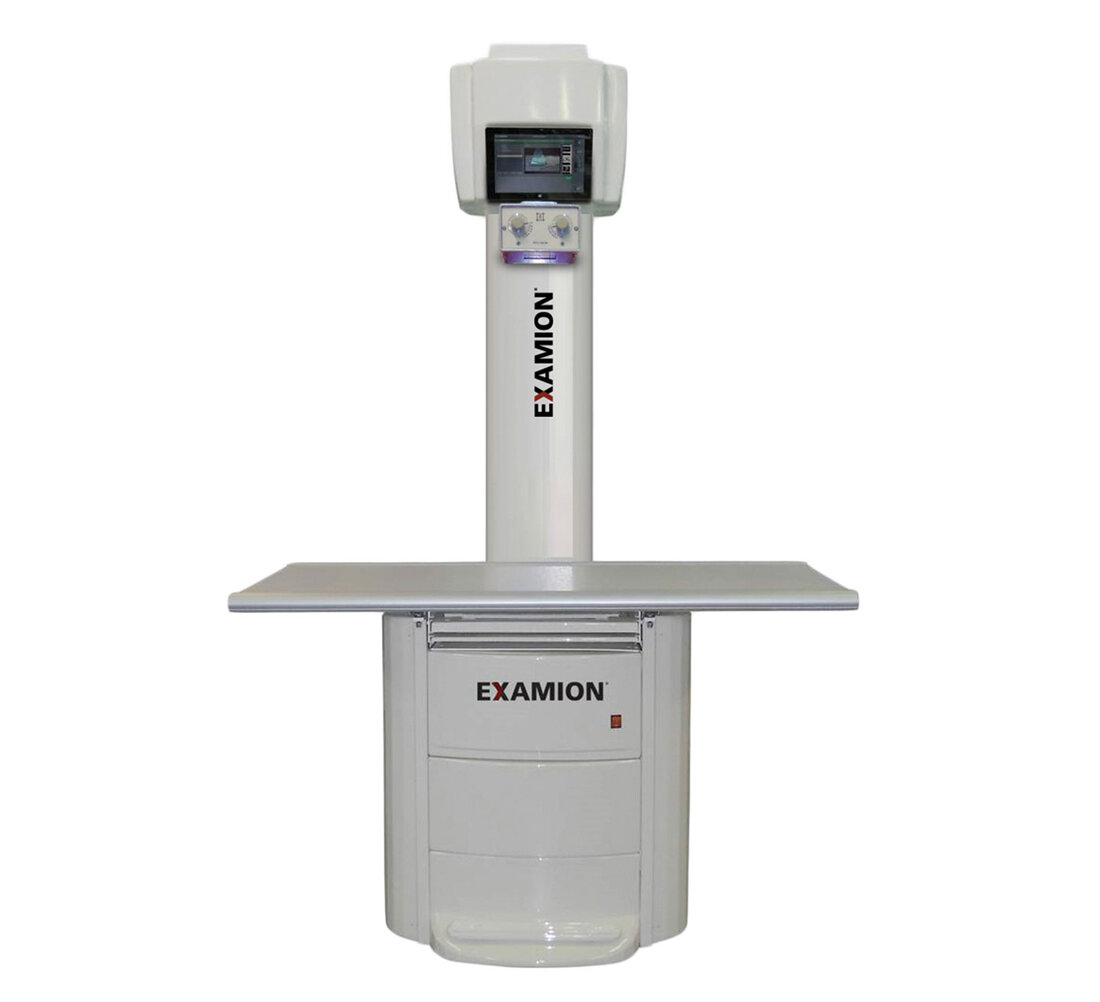

![[Translate to English:] Kleintier-Röntgenanlage X-R Static Univet von EXAMION](/fileadmin/_processed_/1/a/csm_kleintierroentgenanlage-x-r-static-univet-examion_a1010c3854.jpg "[Translate to English:] Kleintier-Röntgenanlage X-R Static Univet von EXAMION")

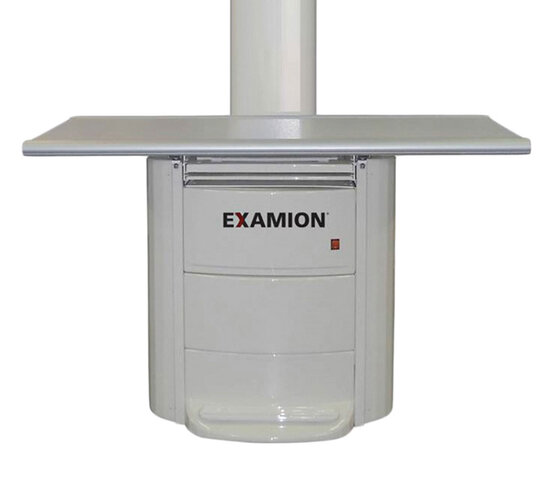

![[Translate to English:] X-R Static Univet mit schwimmender Tischplatte](/fileadmin/_processed_/a/e/csm_roentgenanlage-kleintier-schwimmende-tischplatte-x-r-static-univet_f702289978.jpg "[Translate to English:] X-R Static Univet mit schwimmender Tischplatte")

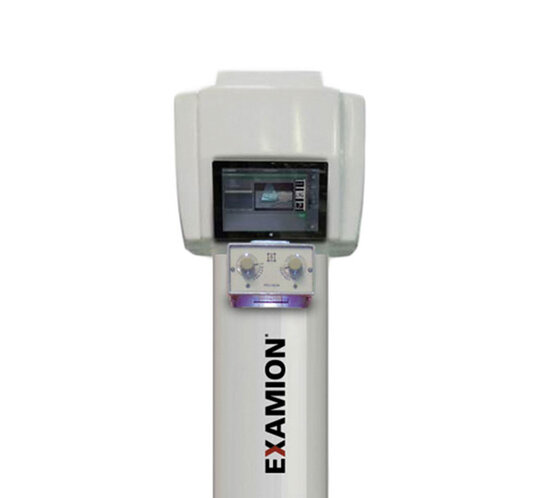

![[Translate to English:] Röntgenanlage für Kleintiere mit Bedientablet an der Röntgenröhre](/fileadmin/_processed_/c/e/csm_roentgenanlage-kleintier-bedienkonsole-x-r-static-univet_3e2fe3a482.jpg "Bedienkonsole Kleintier Röntgenanlage")
Powered by X-AQS EXAMION X-ray software
Easy access through the large multi-touch diagnostic monitor to the advanced X-AQS animal-specific organ algorithms.
Technical Specifications
| Output power | 37,5 kW / 400 mA |
| Voltage range | 40 – 100 kV |
| Current range | 0,1 – 100 mAs |
| Switching time | 0,001 – 1,25 s |
| Mains connection | 230 V – 50 Hz 1-phase (wall plug) |
| Capacitor technology | 3 kW Input, 37,5 kW Output |
| Programs | 352 |
| Foot release switch | 2-stage with safety function |
| Table top | Floating two movements |
| Table height | 85 cm |
| Table top surface | 160 cm x 68 cm (63“ x 26.8“), offset ± 28 cm (11“) |
| Output power | 37,5 kW / 400 mA |
| Voltage range | 40 – 100 kV |
| Current range | 0,1 – 100 mAs |
| Switching time | 0,001 – 1,25 s |
| Mains connection | 230 V – 50 Hz 1-phase (wall plug) |
| Capacitor technology | 3 kW Input, 37,5 kW Output |
| Programs | 352 |
| Foot release switch | 2-stage with safety function |
| Table top | Floating two movements |
| Table height | 85 cm |
| Table top surface | 160 cm x 68 cm (63“ x 26.8“), offset ± 28 cm (11“) |
12-month warranty! (Extended warranty on request.)
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
