X-DR Portable Solution M+ Equine

Ultimately reliable, nextgeneration technology for equine X-raying

EXAMION cutting edge technology

X-DR Portable Solution M+ Equine is a new generation, high-performance 10×13-inch wireless FPD developed on a flexible substrate. It features a 100 μm pixel pitch with direct deposition CsI. The cutting-edge flexible panel technology features a strong, yet lightweight design with IPX5 ingress protection, and reliable full surface, power-saving AED. With its exceptional image quality, the X-DR Portable Solution M+ Equine is the most excellent choice for equine and mobile X-raying.

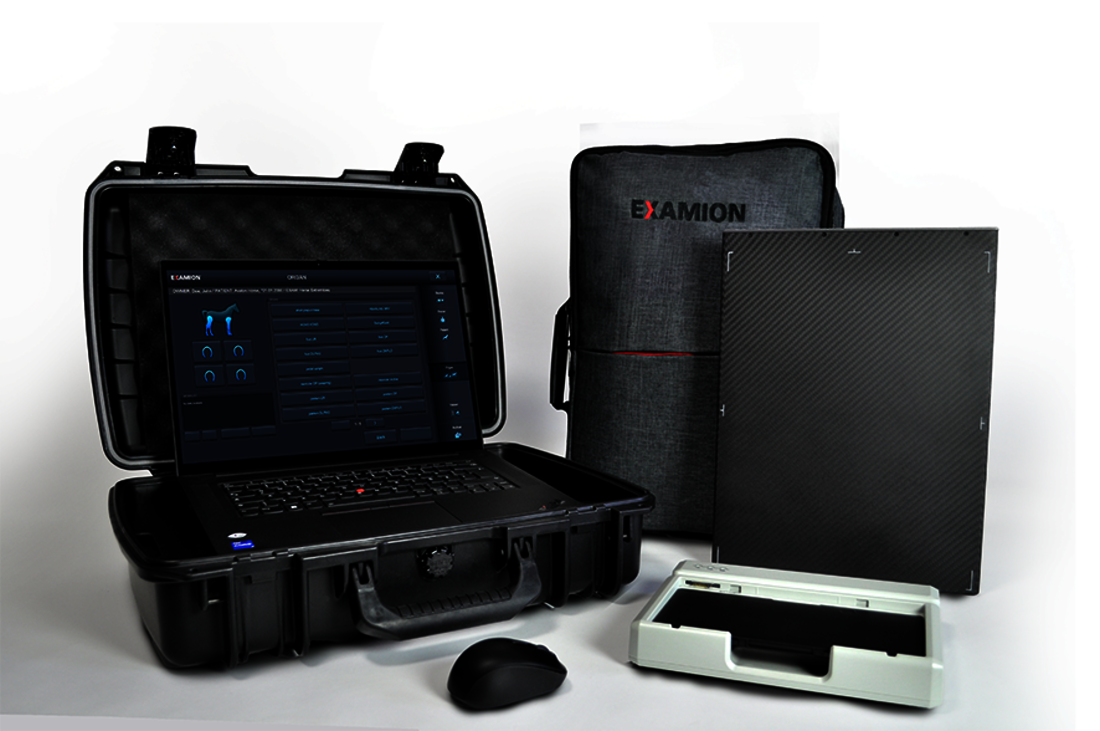

The X-DR Portable Solution M+ Equine is a real two-component, fully wireless equine X-DR solution.

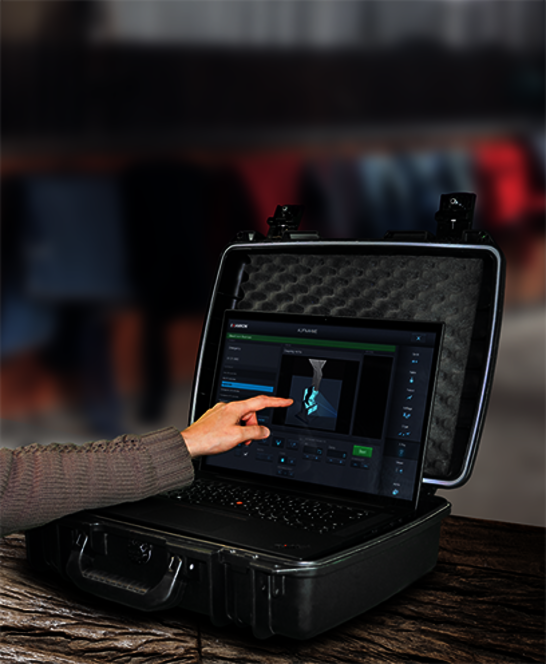

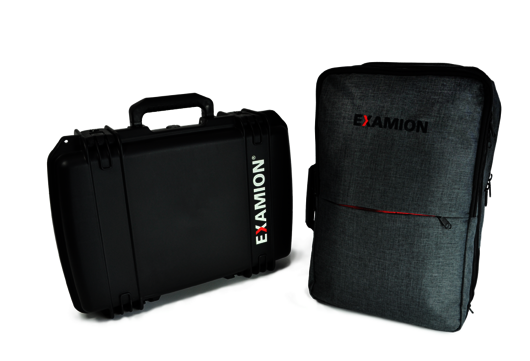

This system will maximize your work on site whilst being extremely portable in-between. Supplied in one compact hardcase or a 6kg rugged rucksack, complete with a 10x13 inch lightweight AED X-DR panel with its laptop touchscreen acquisition station.

  • High performance flexible wireless a-Si flat panel detector

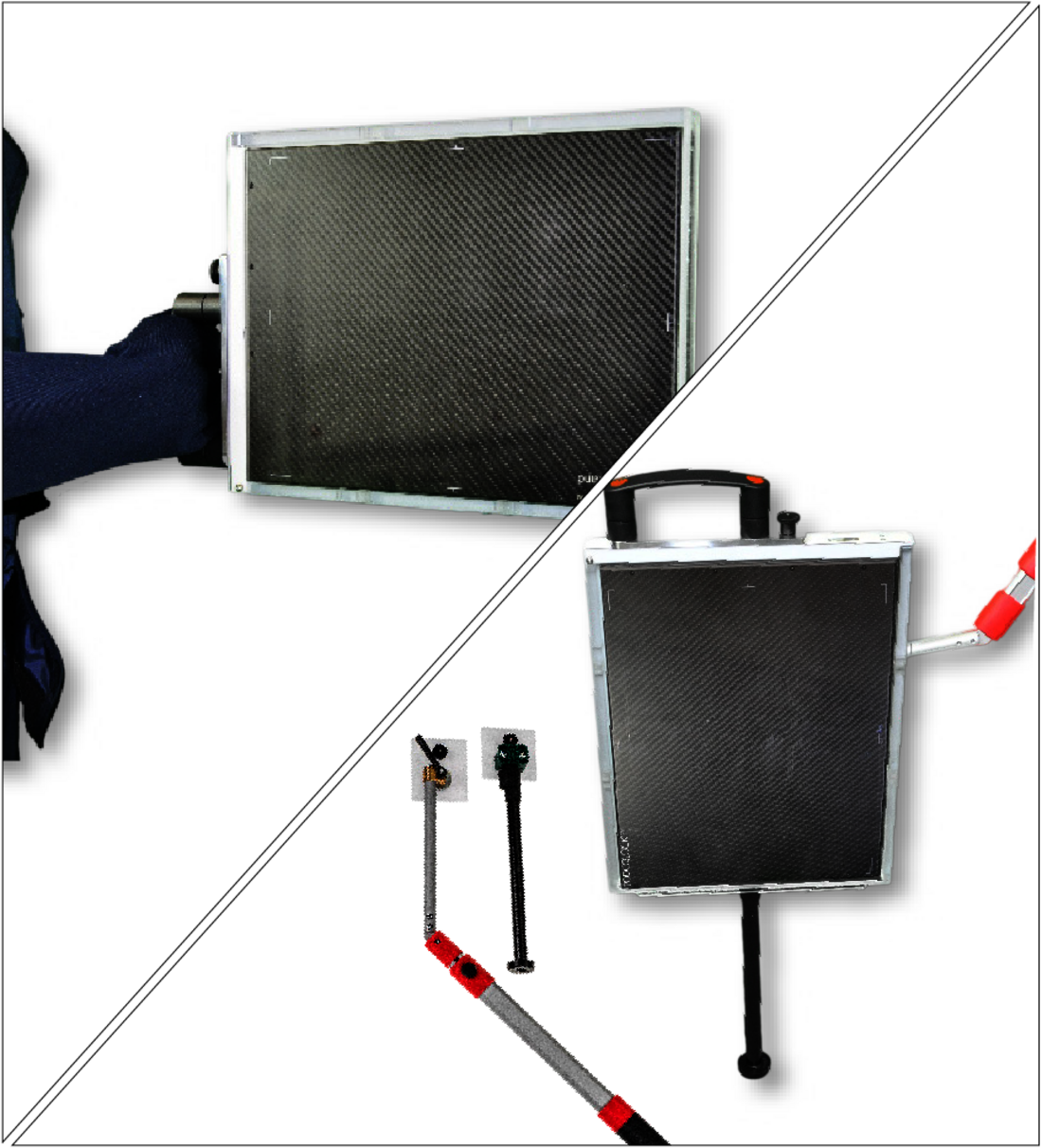

  • See more with a narrow borders design (7/7/10mm) on three sides for optimal hoof and stifle images
  • Unbreakable a-Si sensor developed on flexible substrate for ultimate strength and durability, withstanding 120 cm drops
  • Best-in-class 100 μm pixel pitch with 16-bit ADC for brilliant image detail and the highest diagnostic confidence
  • Direct deposition Csl, with excellent DQE at all frequencies
  • Full surface power saving AED control, exposure at any time
  • Large capacity battery design, with 8+ hours per charge on a single battery (battery saving mode)
  • Lightweight 2.2kg design with IPX5 ingress, protecting against powerful water jets
  • Supports a fast workflow with a cycle time < 3.5 sec, delivering instant images for a better user experience around the horse

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now
EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

Efficient design for your equine radiology: EXAMION X-AQS software operates with minimal clicks and comes with intelligent veterinary tools.

Learn more

Technical Specifications

Detector TechnologyFelxible
Dimensions (H x W x D)27 cm x 36 cm x 1.45 cm
A/D conversion16 Bit
Weight2.0 kg
Pixel matrix2,528 px x 3,318 px
Pixel pitch100 μm
Active area25 cm x 33 cm (10" x 13")
Spatial resolutionMin. 4,0 LP/mm
Preview image time1.5 s
SynchronisationAED (Automatic Exposure Detection) / Software
WaterproofIP 67
Enviromental conditionsOperating
Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 5 % to 90 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Transport / Storage (unpacked)
Temperature:-20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 5 % to 95 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
BatteryType: Li-ion Polymer
Charging time: 4 hours
Battery Capacity: 8.5 h@90s cycle
Capture console, consisting of

X-HW More Acquisition Station
X-AQS Software
Software controls detector, image acquisition and optimization, connects dose area product measurement device.
1. X-AQS Modality
2. DICOM Modality (Send/Store, Worklist)

12-month warranty, extended warranty on request


Do you have any questions?

Contact us for more information about our X-DR Portable Solution M+ Equine and experience the right X-ray solution for you.

+49 711 120 002 - 0


Contact us

The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
