X-DR Portable Case M WiFi

Specialised X-ray system for equine radiology

X-DR Portable Case M WiFi

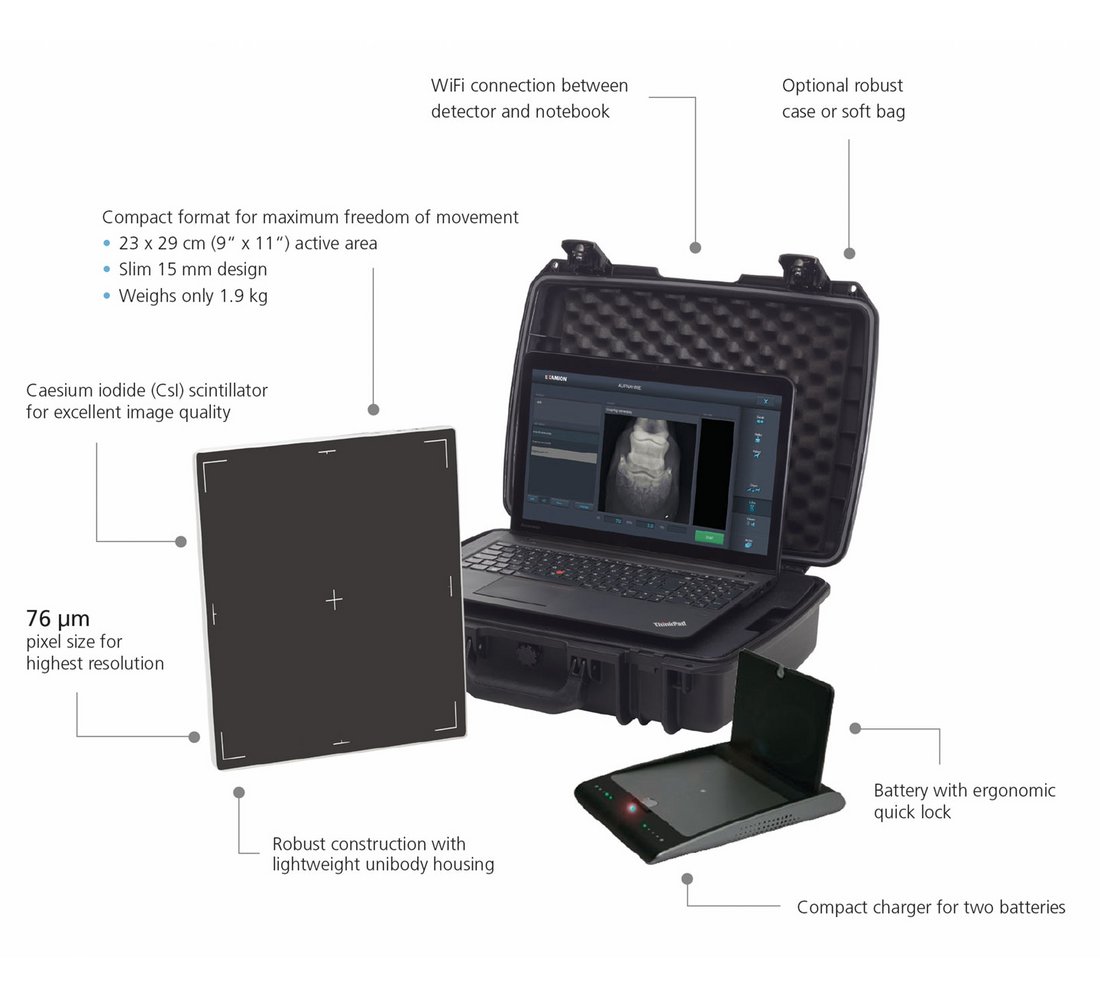

Are you a veterinarian specialized in horses, who does a lot of X-rays? Then the X-DR Portable Case M WiFi DT is exactly the right choice for you. The size M X-ray detectors are based on the standard X-ray film format 24 cm x 30 cm. Compared to L-size detectors, they are more compact and even easier to handle, making them perfect for digital X-ray imaging of horses. Even after many X-ray examinations, the X-DR Portable Case M WiFi DT is still comfortable to use. The detector format allows for all standard X-ray examinations in horses and the detector itself is always ready for use.

  • The system comes with a soft carrying case and a hard case
  • Battery life: 3.5 hours (2 batteries included)
  • Suitable for pre-purchase, fast and high-volume X-raying on horses
  • Removable laptop workstation

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DR Portable Case M WiFi DT

Express purchase exam option

Compact and lightweight, for even faster and easier handling around horses

Handy compact system

The X-DR system requires a small storage case, which improves the portability of the X-ray system

Brilliant image quality

High-resolution radiological images for brilliant image quality thanks to the smallest pixel size of only 76 microns

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

Efficient design for your equine radiology: EXAMION X-AQS software operates with minimal clicks and comes with intelligent veterinary tools.

Learn more

Technical Specifications

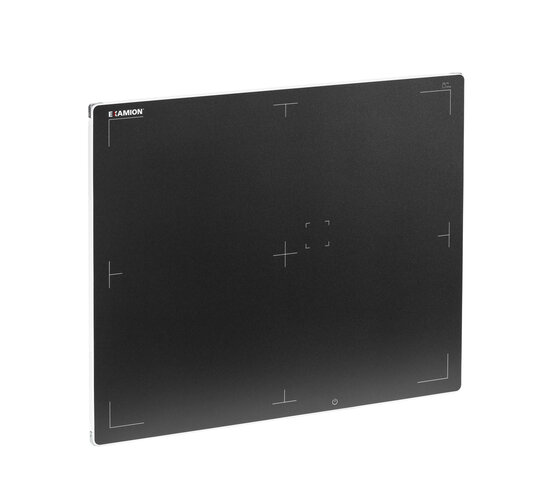

Detection methodIndirect conversion, a-Si TFT
External dimensions (W x H x D)327 mm × 268 mm × 16 mm (12.9“ x 10.6“ x 0.6“)
Weight1.9 kg (4.2 lbs)
Pixel matrix3,072 x 3,840 pixel
Pixel pitch76 μm
Active area233.47 x 291.84 mm (9.2" x 11.5")
A/D conversion16 bits
Spatial resolutionmin. 6.52 lp/mm
Cycle timeHT Mode: 7 s
HR Mode: 9 s
SynchronisationAED (Automatic Exposure Detection)
Housing materialUnibody aluminium structure plus high quality polymers
Weight limitLocal load: 100 kg at Ø 40 mm
Uniform load: 170 kg at effective image area overall
Water resistantIPX4
Enviromental conditionsOperating
Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 30 % to 85 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Transport / Storage (unpacked)
Temperature: -10 °C to 40 °C (14 °F to 104 °F)
Humidity: 10 % to 90 % (non condensing)
Atmospheric pressure: 500 hPa to 1060 hPa
BatteryType: Li-ion Polymer
Charging time: 3 hours
Life: 3.5 hours by full acquisition;
approx. 630 images (Fully charged / Discharged completely, 1 cycle)
Capture console, consisting of

X-HW More Acquisition Notebook, X-AQS PACS software
(controls detector, image acquisition and optimization)

Dimensions (L x W x D)508 mm x 373 mm x 147 mm (20" x 14.7" x 5.8")
Total weight (fully equipped)< 11 kg (24.3 lbs)
MaterialLightweight strong HPX@ Resin, watertight, dustproof
Feature equipmentBattery charger for detector with 2 batteries
Cowboy box for detector and distance holder
EXAMION® starter kit and backup solution

12-month warranty, extended warranty on request
