Digital X-ray detectors by EXAMION

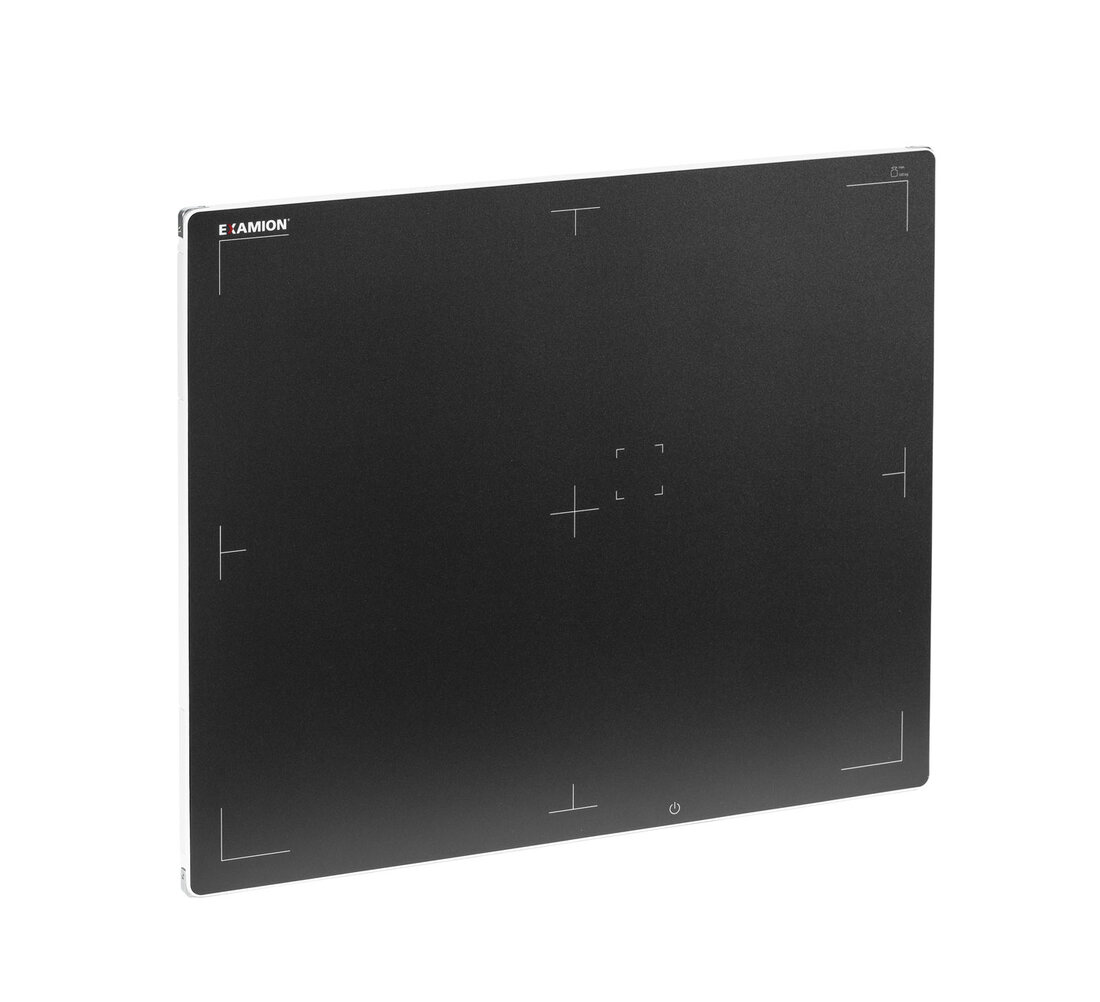

Small X-ray detector for specialised fields of application


This small X-ray detector is the optimal solution if you are performing stationary X-rays using a standard-size detector, but also need a portable X-ray solution for examining extremities, for example.

This detector size can also be used in incubator-based neonatal radiography.

  • 20 cm x 30 cm
  • For specialised fields of application

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DR M WiFi

Rapid execution

Digital X-ray images are available for processing and evaluation directly after acquisition



Optimised workflow

Easy handling with only a few clicks to generate the optimal X-ray image



Outstanding image quality

Outstanding quality X-ray images offer an optimal basis for qualitative evaluation and diagnosis



EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

Customisable body region and organ lists for speedy operation and rapid completion of  X-ray procedures.

Learn more

Technical Specifications

Sensor typeIndirect conversion, a-Si TFT
Dimensions (W x H x D)328.5 mm x 268.5 mm x 16 mm (12.9“ x 10.6“ x 0.6“)
Weight1.6 kg (3.5 lbs)
Pixel matrix1,920 x 1,560 pixel
Pixel pitch148 μm
Active area23 cm x 28 cm
A/D conversion16 bits
Spatial resolution4.3 lp/mm
Image transfer time< 6 s (wireless)
Trigger modeAED
Weight limitLocal load: 100 kg at Ø 80 mm
Uniform load: 150 kg at effective image area overall
Environmental conditions

Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 20 % to 80 % (non-condensing)
Atmospheric pressure: 700 hPa to 1100 hPa

Transport / Storage
Temperature: -10 °C to 55 °C (14 °F to 131 °F)
Humidity: 5 % to 95 % (non-condensing)
Atmospheric pressure: 500 hPa to 1100 hPa

BatteryType: Lithium-Ion
Charging time: < 4 h
Life during operation: > 5 h
Life in standby status: > 10 h
Capture console, consisting ofX-HW More Acquisition Station
X-HW More Monitor 22“
X-AQS Software
Software controls detector, image acquisition and optimization, connects dose area product measurement device.
Options: 1. X-AQS PACS, 2. DICOM Modality (Send/Store, Worklist), 3. X-AQS Modality
OptionalMonitor: X-HW More Touchscreen 19“, X-HW More Monitor Eizo MS230W,
X-HW More Monitor Eizo EV2450


24-month warranty
Extended warranty on request


Questions and Answers

As a PACS manufacturer, we are specialized in radiological image management. Based on our long-standing experience also in the X-ray sector, we act as a one-stop shop: from consulting to planning and implementation of the entire X-ray room and subsequent image distribution. Thus, our representatives can provide in-depth information about our digital X-ray systems and give you appropriate retrofitting advice, but they can also help you quickly and efficiently in case of a malfunction.

It depends on the individual case. Depending on the X-ray system, we are able to carry out maintenance and repairs or enable further use of X-ray equipment. This must be evaluated individually; our representatives will be happy to advise you! Send us an email at or contact your sales representative directly.

Each of the above indicated types of business operation has different characteristics and challenges which we as manufacturer will take into account accordingly, whether by attractive financing options that can be mapped accordingly or by corresponding product features that make an application particularly easy. Please contact your representative.

Do you have any questions?

Detailed information about our X-DR retrofit detector solutions are available on request.

+49 711 120 002 - 0

Contact us

The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
