X-DR Portable Solution M+ Equine

Ultimately reliable, nextgeneration technology for equine X-raying

EXAMION cutting edge technology

The advantage of this portable X-ray system from EXAMION is that it is user-friendly and mobile, allowing the user to concentrate fully on treating the animal rather than operating the X-ray system. In addition, the compact, glass-free detector offers an optimal solution for X-rays on horses, as it is lighter and offers the user maximum manoeuvrability.

Pixel size 100 µm

The pixel size of only 100 µm ensures the highest resolution of the X-ray image and thus excellent image quality.



No more broken glass

Innovative, polymer-based carrier for sensitive detector layer inside the detector housing: no more risk of glass breakage.


See more

No more cropped image information of the X-ray image thanks to the narrow detector edge of just 5 mm.


Customised portability

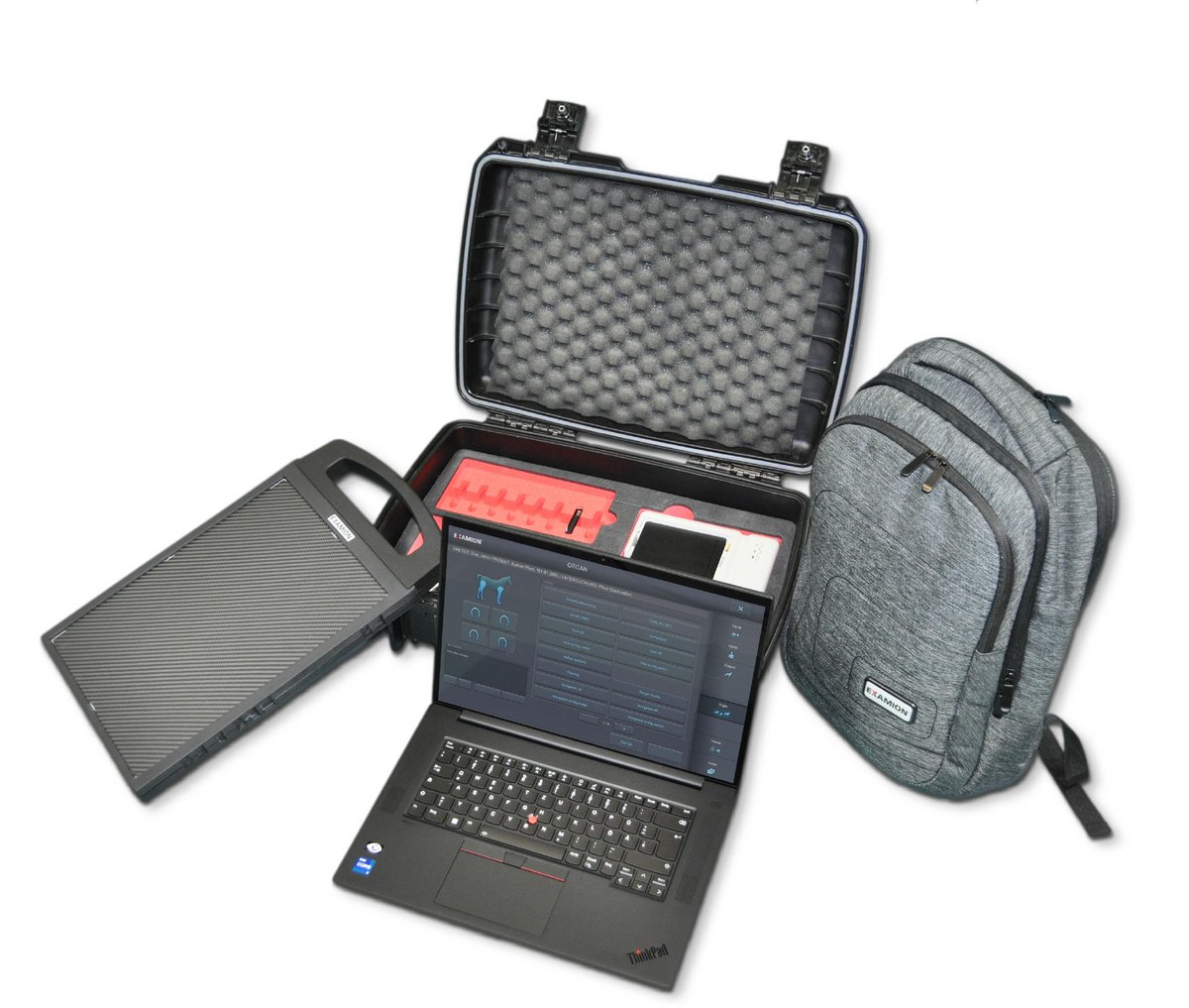

With the X-DR Portable Solution M+ Equine, you can customise the transport solution to suit your requirements: Choose between a sturdy hard-shell transport case or a lighter rucksack.

Both variants reliably protect the equipment from dust and dirt. Both are also comfortable to to carry. But you alone know which transport option suits your everyday work better.

Customised protection

To make handling the detector safe and easy, we offer you two versions of a protective box.


Variant 1:

Protect your X-ray detector with the Cowboybox from Podoblock:

  • Full-surface cover to protect against external influences
  • Ideal protection for the detector
  • Height-adjustable stand and spacer to increase the distance to the radiation source

Variant 2:

The X-ray detector X-DR M+ WiFi Equine is equipped with the new, ultra-modern DR-Quadro mount from Podoblock:

  • Particularly lightweight protective frame with narrow edge
  • Easy handling thanks to customisation and intelligent locking system
  • Shock-absorbing rubber sides
  • Viewing window in the frame for optimum operation
  • Height-adjustable stand and spacer for good radiation protection

Online request

Do you need more information about our products and services?

Contact form

Phone request

Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Additional advantages of the X-DR Portable Solution M+ Equine

Flexible to use

Suitable for all X-ray generators, ideally combined with the latest generation of lightweight battery-powered X-ray devices


With its automatic exposure detection and automatic cycle start, no synchronization signal to the detector is required


Mobile without limits

WiFi connected X-ray detector and laptop

Always ready to use

System up and running in seconds, combined with short battery charging time

Protected by IP67

Protection against liquid ingress: with its housing IP 67 protection class

EXAMION logo figurative mark

Powered by X-AQS EXAMION X-ray software

Efficient design for your equine radiology: EXAMION X-AQS software operates with minimal clicks and comes with intelligent veterinary tools.

Learn more

Technical Specifications

Detector TechnologyFlexible
Dimensions (H x W x D)27 cm x 36 cm x 1.45 cm
A/D conversion16 Bit
Weight2.0 kg
Pixel matrix2,528 px x 3,318 px
Pixel pitch100 μm
Active area25 cm x 33 cm (10" x 13")
Spatial resolutionMin. 4,0 LP/mm
Preview image time1.5 s
SynchronisationAED (Automatic Exposure Detection) / Software
WaterproofIP 67
Enviromental conditionsOperating
Temperature: 10 °C to 35 °C (50 °F to 95 °F)
Humidity: 5 % to 90 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
Transport / Storage (unpacked)
Temperature:-20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 5 % to 95 % (non condensing)
Atmospheric pressure: 700 hPa to 1060 hPa
BatteryType: Li-ion Polymer
Charging time: 4 hours
Battery Capacity: 8.5 h@90s cycle
Capture console, consisting of

X-HW More Acquisition Station
X-AQS Software
Software controls detector, image acquisition and optimization, connects dose area product measurement device.
1. X-AQS Modality
2. DICOM Modality (Send/Store, Worklist)

Do you have any questions?

Contact us for more information about our X-DR Portable Solution M+ Equine and experience the right X-ray solution for you.

+49 711 120 002 - 0


Contact us

The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
