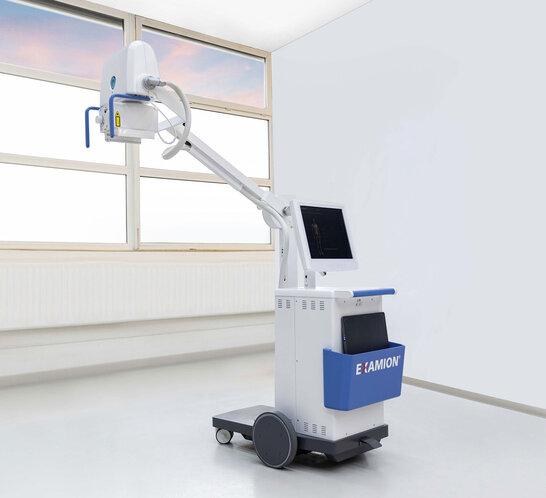

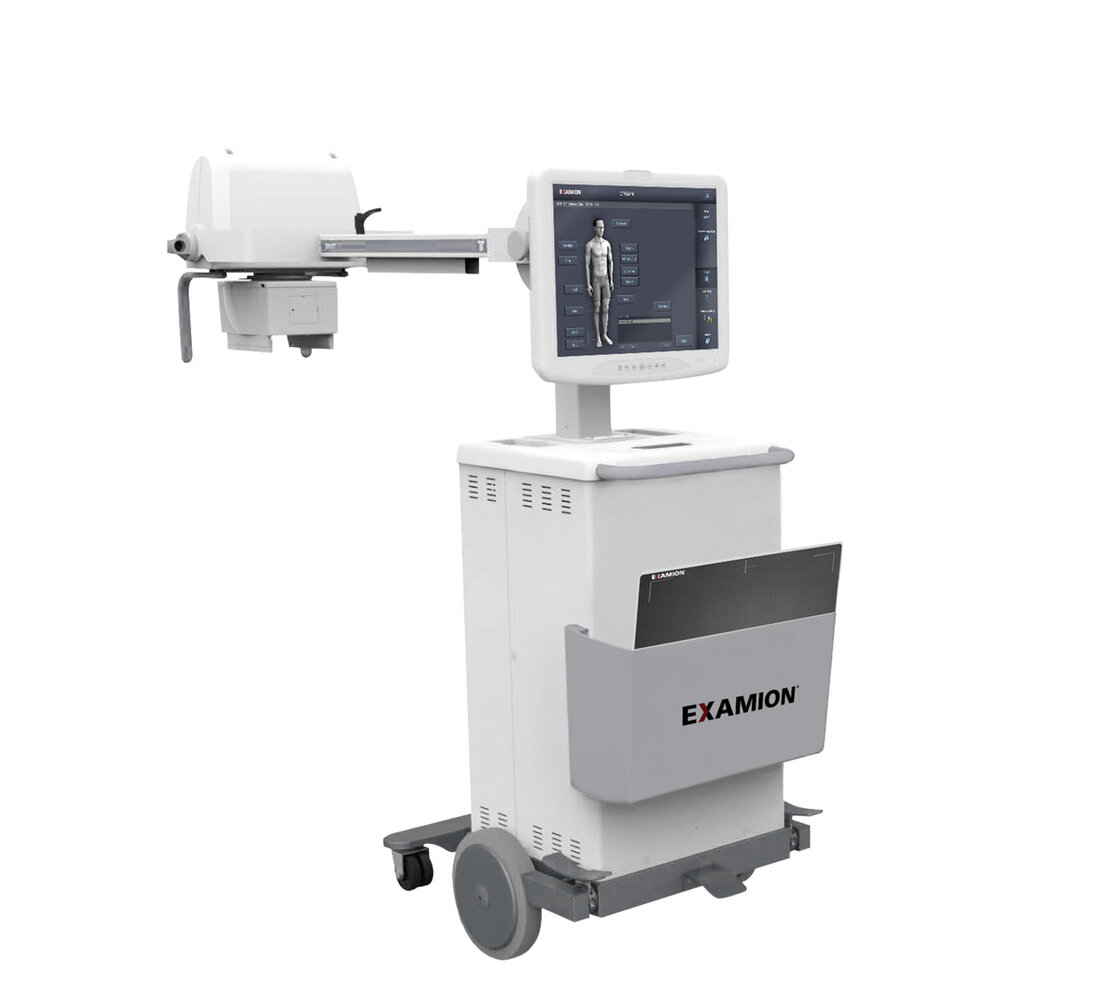

X-DRS Mobile 320
The X-DRS Mobile 320 is a manually-operated X-ray system with detector that is primarily for use when patients cannot be moved. Its small size and easy manoeuverability, even in rooms with confined spaces such recovery rooms, make it a useful option for use in multiple settings.
Mobile X-ray systems are essential devices that all hospital radiography departments need to have at their disposal. Mobile X-ray devices permit radiological examination of immobile patients, such as intensive care and trauma patients, directly at the patient's bedside. Our durable and reliable X-ray devices are particularly easy to use, so that you can concentrate fully on the patient, especially in extreme emergency situations.
|Mains connection||115 Vac / 230 Vac ± 10 %, standard monophase with ground conductor.|
Automatic setting of the equipment according to mains voltage
|Frequency||50 Hz / 60 Hz ± 5 Hz|
|Absorbed current||10 A|
|Line resistance||< 1 Ω @ 115 / 230 Vac|
|Standard socket||16 A @ 230 Vac|
|Power supply cable||8 m|
|Protection class||IP XØ|
|W x L x H|
(in transport position)
|618 mm x 1366 mm x 1444 mm|
|Transport handle height||949 mm|
|417 mm ÷ 2092 mm|
|Max. height||2333 mm|
|Rotation of the monobloc||Around the arm axis (α swivel): ± 180°|
Around its axis (α swivel): 151° (102° ahead, 49° back)
|Movement||Manual with dead man parking brake|
|32 kW @ 100 kV, 320 mA, 100 ms|
|kV variation range||40 ÷ 125 kV at steps of 1 kV|
|mA variation range||50 ÷ 400 mA|
|mAs variation range||0.1 ÷ 220 mAs|
|Exposure times range||0.001 ÷ 2.2 s according to mAs|
|Monoblock||• Max. power (100 kV - 320 mA): 32 kW|
• Max voltage at the tube: 125 kV
• Max current at the tube: 450 mA
• Min. inherent filtration @ 75 kV: 1.1 mm Al
• Thermal capacity available: 500 kJ
• Continuous thermal dissipation: 55 W
• Weight: 19.4 kg
|X-ray tube||• Rotation speed: 3000 min-¹|
• Nominal High voltage: 130 kVp
• Nominal focus dim. (IEC 60336): 0.8 mm small focus, 1.3 mm large focus
• Nominal anodic power (IEC 60613): 16 kW small focus, 32 kW large focus
• Thermal capacity of the anode: 80 kJ (107 kHU)
• Max continuous anode dissipation: 300 W
• Min. inherent filtration (IEC 522): 0.7 mm Al
|Collimator||• Collimation: Manual with internal light source, multilayer, squared field.|
• Coverage of the field at 100 cm FFD (SID): min 0 x 0 cm, max 43 x 43 cm
• Lighting source: Clusters of high-brightness LED power
• Focal distance measurement: Retractable tape measure (max extension 3 m)
• Rotation: ± 120°
• Weight: 5.5 kg
• Inherent filtration @ 75 kV: 2 mm Al
|Selectable Detectors||X-DR L WiFi||X-DR L WiFi Premium|
|Pixel Size||150 μm||100 μm|
|Pixel Matrix||2304 x 2800||3500 x 4300|
|Weight||3.4 kg||2.8 kg|
|Uniform Load||150 kg||300 kg|
|Local Load||100 kg (4 cm diameter)||150 kg (4 cm diameter)|
|CPU||Intel® CoreTM i7|
|Mass Storage||60 GB SSD, 460 GB HDD|
|Network||Gigabit LAN RJ45, WLAN IEEE 802.11 ac / a / b / g / n|
|Display||19", 1280 x 1024, multi-touch screen|
|Operating System||Windows 10 IoT|
EXAMION X-AQS DICOM Modality SCU
Questions and Answers
EXAMION will continue to stay a strong, reliable partner for the customers, even beyond the purchase process. We perform service, repair and maintenance of the X-ray system and carry out all required tests and measurements competently. Furthermore, we offer attractive financing models. Our sales representatives will be happy to advise you personally and according to your needs.
Yes, an image export of single images can be done in different ways by the users themselves. Available formats include jpg and DICOM. To export DICOM images, our X-AQS “Export Module” is required. This is usually part of the standard configuration of our X-ray software, so it should probably be installed on your system already as well. Depending on the configuration of the X-AQS software, the image data can also be stored on a specific path for further distribution or upload by cloud services. Please feel free to contact our representatives for more detailed information.
Is EXAMION able to adopt existing digital image archives and convert them from another system if necessary?
Yes, our experts are mostly able to accomplish this; however, we always have to check this individually. Therefore, you do not have to rely on the provider you want to switch from for the conversion.
Do you have any questions?
Please contact us for more information about the X-DRS Mobile 320, we will be happy to advise you.
The actual product configuration depends on the equipment selected and may differ from country to country. The products and product equipment shown in this illustration may differ in individual details from the current delivery program. Subject to changes in the interest of technical progress and errors excepted.
