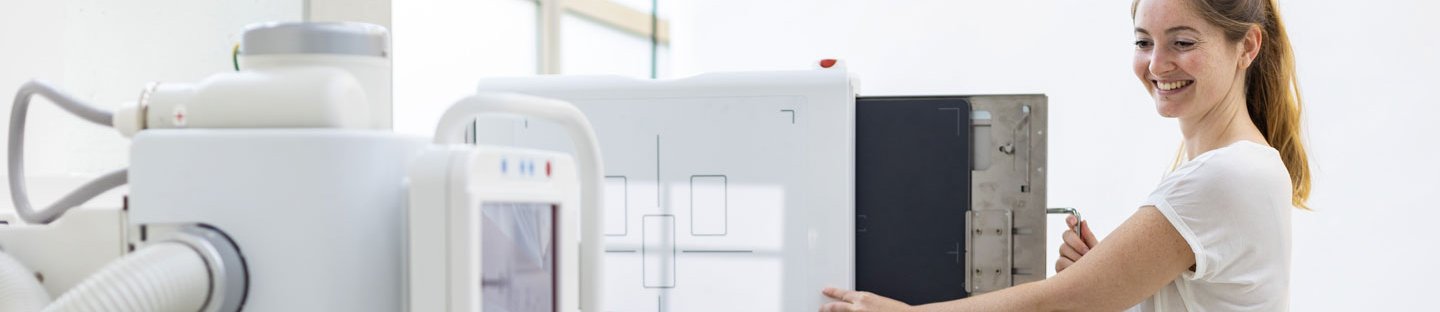

X-ray systems with swivel brackets require extremely little space and, despite this, enable all common applications of digital X-ray. Our X-DRS Floor U-Arm and Z-Arm systems are a suitable choice, especially if there are different requirements for the X-ray system in a medical care center or practice network. Patient positioning for X-ray exposures in the upright position is particularly easy, as the X-ray tube and bucky tray can be brought to the correct height at the same time. For imaging of the recumbent patient, the swivel arm is combined with an X-ray table.
Since the X-ray devices only have a single bucky tray, the X-ray detector does not have to be removed. The risk of a discharged battery or device damage is reduced to the minimum.
The user also benefits from economic acquisition and maintenance costs as only one detector is required for the X-ray operation of the swivel bracket system.
Swivel bracket systems – Mechanical and motorised movement

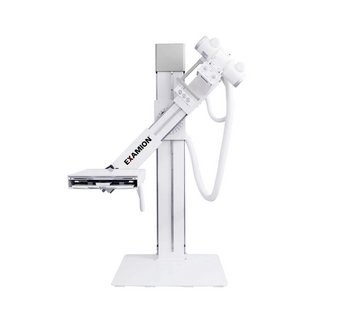

X-DRS Floor U-Arm
- Small footprint
- Convenient operation and positioning
- Operation with only one detector
X-DRS Floor Z-Arm
- Comfortable operation
- Positioning with a simple key stroke
- Particularly suitable for frequent inclined acquisition
