Mobiles Röntgensystem für temporäre medizinische Einsätze

X-DRS Mobile 4/8 kW

Mobile X-ray system - especially for emergency examinations

X-DRS Mobile 4/8 kW

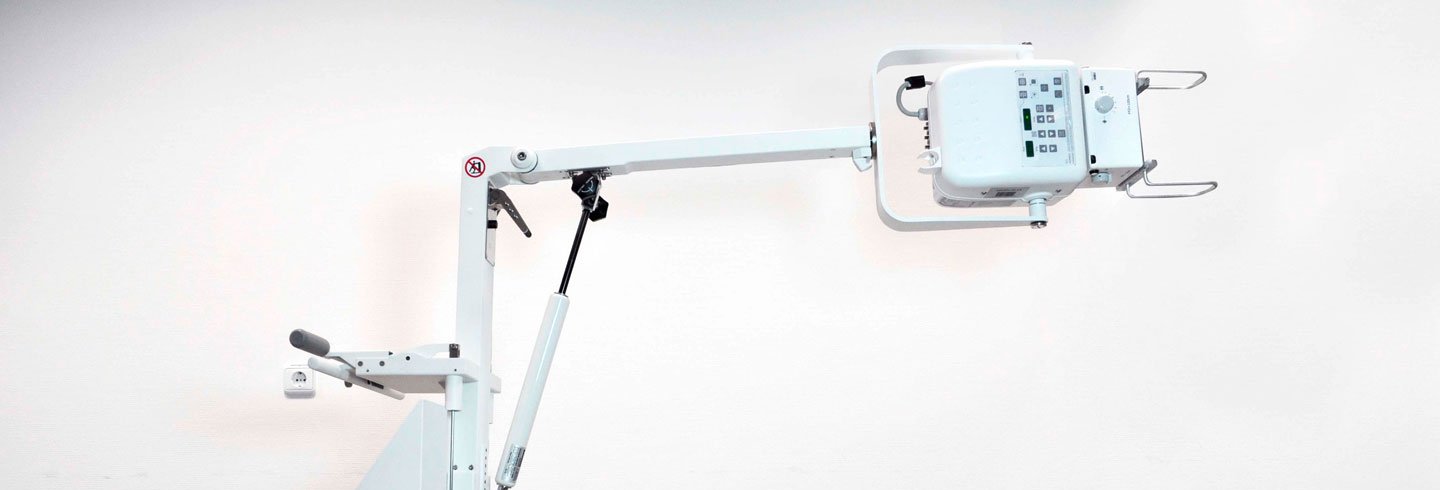

The X-DRS Mobile 4/8 kW consists of a stable mobile stand and a fixed X-ray system. In addition, it is coupled with an EXAMION X-ray detector and controlled via our X-AQS X-ray software.



The mobile X-ray system enables flexible use for acquisition of radiological images at different locations. Not only can it be transported safely from room to room, but it is also suitable for transport. The X-DRS Mobile 4/8 kW can be quickly and easily collapsed to a compact size in just a few simple steps, and therefore can be moved between different locations with ease and flexibility.

  • Only 46 kg
  • Can be optimally combined with the X-DR L WiFi unit
  • Can be optimally combined with the X-DR Portable Case L WiFi or the X-DR Portable Bag L WiFi unit
  • Also available as X-DRS Portable 4/8 kW with a collapsible instead of a mobile stand

Online request

Do you need more information about our products and services?

Contact form

Phone request

Availability
Mondays – Fridays: 8.00 a.m. – 5.00 p.m.

Call now

Advantages of the X-DRS Mobile 4/8 kW

Central control unit

If desired, all components can be operated wirelessly using the EXAMION software X-AQS

Transportability

In an emergency, it can be collapsed to a compact size for a quick change of location

Powered by X-AQS EXAMION X-ray software

X-AQS is a universal software platform for digital radiography that can be modularly adapted to your individual needs..

Learn more

Technical Specifications

Constant potential kW ratings4,0 kW8,0 kW
kVp range in 1 kVp steps Accuracy40 to 125 ± 3 %
mA stations5, 6,4, 8, 10, 12,5, 16, 20, 25, 32, 40, 50, 64, 80, 100
Exposure time range Number of stations0.001 – 10 s 41 (in 25 % steps)
mAs range Number of stations Accuracy0.1 – 250 mAs 34 (in 25 % steps) ± 5 %



Stationary anodeYes
Two focal spots0,5 mm – 1,8 mm0,6 mm – 2,8 mm
Anode heat storage capacity47.215 HU40.000 HU
Target angle16°15°
Red laser pointerOptional
Power cord6 m
Exposure cord3 m
Line regulationSingle-phase line automatic Regulation. Automatic output power adaption to power line conditions.
Line power requirements (± 10 % VAC, 50 Hz / 60 Hz)100 – 240 VAC220 – 240 VAC
Weight45 kg
Warranty12-month warranty, extended warranty on request



Questions and Answers

As a PACS manufacturer, we are specialized in radiological image management. Based on our long-standing experience also in the X-ray sector, we act as a one-stop shop: from consulting to planning and implementation of the entire X-ray room and subsequent image distribution. Thus, our representatives can provide in-depth information about our digital X-ray systems and give you appropriate retrofitting advice, but they can also help you quickly and efficiently in case of a malfunction.

It depends on the individual case. Depending on the X-ray system, we are able to carry out maintenance and repairs or enable further use of X-ray equipment. This must be evaluated individually; our representatives will be happy to advise you! Send us an email at vertrieb@examion.com or contact your sales representative directly.



Each of the above indicated types of business operation has different characteristics and challenges which we as manufacturer will take into account accordingly, whether by attractive financing options that can be mapped accordingly or by corresponding product features that make an application particularly easy. Please contact your representative.
